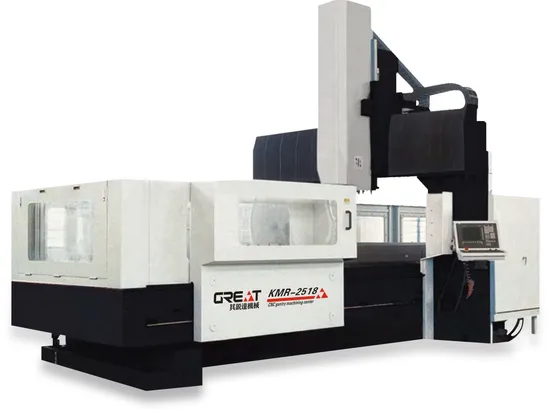

Kmr-2518 CNC Machine Tool Engraving Milling Longmen Machine

Product Description

KMR-2518 Vertical CNC Machine Tool Engraving Milling Longmen Machining Center Product Description
1. The bottom is an integrated structure, the internal reinforcement ribs are added to increase the high rigidity design, and the overall mechanical mechanism is made of Gb300 castings to ensure that it will not be deformed for a long time;
2. The ultra-wide column design increases the contact area with the beam to stabilize the vibration caused during processing; standard height: 2.2 meters, optional height: 2.4 meters, customers can choose;
3. The box-shaped beam design, combined with the double-layer bone reinforcement structure, doubles the beam rigidity, strengthens the durability of mechanical precision and the stability of processing precision;
4. The high-horsepower spindle is matched with a 6000r.p.m two-speed stepless gearbox, which provides the ability to cut heavy at low speeds, as well as the finishing cutting ability at high speeds, with a wide processing range;
5. One-piece sliding seat with double hydraulic counterweights, the best position of the Z-axis screw and the center of the double symmetrical counterweight hydraulic cylinder, can eliminate the unbalanced torque, ensure the accuracy of the micro-feed and the precision of long-term processing ;
6. The integrated machine head greatly improves the structural rigidity, effectively prevents the influence of resonance and thermal changes, and strengthens the cutting rigidity Detailed Photos

Product Parameters

Model	Unit	2011	2511	2013	2513	2016	2516	3016	2518	3022	4022	3025	4025
Work table size	mm	900X2000	900X2500	1000X2000	1000X2500	1300X2000	1300X2500	1300X3000	1600X2500	1800X3000	1800X4000	2000X3000	2000X4000
(WidthXength)
Travel direction of worktable	mm	2000	2500	2000	2500	2000	2500	3000	2500	3000	4000	3500	4500
(X axis)
Travel direction of spindle slide	mm	1100	1100	1350	1350	1650	1650	1650	1800	2200	2200	2500	2500
(Y axis)
Spindle up and down movement direction stroke	mm	800	800	800	800	800	800	800	1000	1000	1000	1000	1000
(Z axis)
Gantry width	mm	1220	1220	1400	1400	1650	1650	1650	1800	2200	2200	2500	2500
Distance from spindle end surface to table surface	mm	50-850	50-850	70~870	70~870	250~1050	250~1050	250~1050	150-1150	250~1250	250~1250	235~1235	235~1235
Workbench T-slot	/	7-22X125		7-22X150		7-22X170			9-22X180	9-22X180		10-28X200
(Number-size spacing)
Spindle specification	/	BT50/Φ155		BT50/Φ190		BT50/Φ190			BT50/Φ190	BT50/Φ190		BT50/Φ190
(model/diameter)
Spindle speed	/	6000rpm		6000rpm		6000rpm			6000rpm	6000rpm		6000rpm
Spindle power	KW	18.5		22		22			22	22		30
XYZ axis rapid feed	m/min	15/15/12		15/15/12		10			10	10		10
XY axis chip feed	mm/min	5-8000		5-8000		5-8000			5-8000	5-8000		5-8000
Tool magazine capacity	/	24/32/40		24/32/40		24/32/40			24/32/40	24/32/40		24/32/40
Maximum tool length	mm	350		350		350			350	350		350
Heaviest tool weight	kg	18		18		18			18	18		18
Workbench bearing	T	2	4	3	4	3	4	5	5	6	10	8	2
Machine weight approx	T	15	17	17	19	18	20	22	25	37	42	45	50

Company Profile
Ningbo GREAT Machine Tool Co., Ltd. is a modern scientific and technological enterprise specializing in the production of CNC Machinewith brand name Great. Our company is in the Baojia Industrial Park of Ningbo City, adjacent to the airport, highway, railway station, and bus station with very convenient transportation.Our main products including: Vertical machining centers, high-speed drilling and tapping machines, CNC engraving and milling machines, gantry machining centers, horizontal machining centers, etc. Complete specifications, diversified configurations can be selected according to your different needs. We offer customized products according to your needs, cost-efficient products processing solution, importing automation, replacing labour by machines, etc.Our products are suitable for producing auto accessories, textile Accessories, digital products, medical instruments, mold manufacturing, aluminum casting and so on.We import inspection equipment from Italy and Britain and conduct complete inspection for each machine, including machine tool geometry inspection, laser interference inspection, full tool test, spindle motor dynamic balance correction, etc. To ensure the high precise and stable quality of our products. In addition, we provide best after-sales service. Our professional teams maintain close contact with customers and provide technical support at any time if necessary.We adhere to the Diamond quality concep tand keep working on it to provide best products for each customer.

---
