US$10.70-58.57
|
1 Piece
(MOQ)
|
Basic Info.
Number of Stator
Three-Phase
Function
Driving, Control
Casing Protection
Open Type
Starting Mode
Variable Frequency Starting
Transport Package
Carton/Wooden Case
Production Capacity
1000 Pieces/Year
Product Description
Product Description

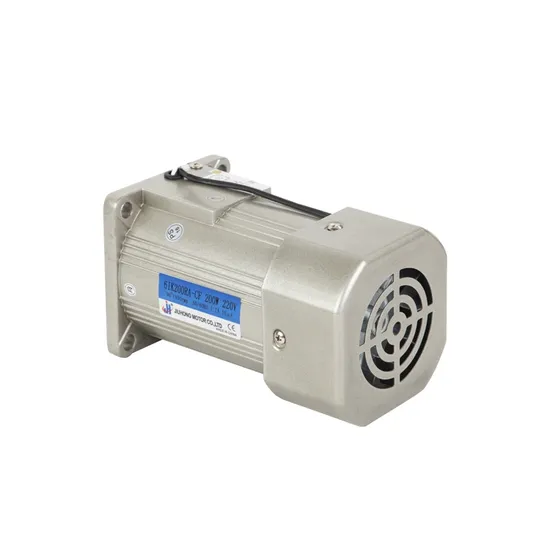

The motor end cover and shell are formed by die-casting aluminum, which has the advantages of high precision,high strength and light weight.The stator is composed of a stator core made of silicon steel sheets, copper wire coils and insulating materials.
The rotor is composed of laminated silicon steel sheets and aluminum cast conductors. The rotor shaft is made of high-performance medium-carbon alloy steel, processed by a special process, and has two types: round shaft and gear shaft. Bearings and oil seals are selected from major domestic brands to ensure product running performance and sealing effect. The wire is made of high temperature resistant and flame retardant materials.
Rated power (Continuous)
| W
| 120 (60W/90W/120W)
|
Rated speed
| r/min
| 2500
|
Rated torque
| N.m
| 0.458
|
Instantaneous maximum torque
| N.m
| 0.687
|
Rotor moment of inertia
| J:X10-4kg.m2
| 0.250
|
Speed control range
| RPM
| High pressure 200-2500RPM (Low pressure 200-3000RPM)
|
Speed control range
| On load
| Below ± 1 %: condition 0~rated torque, rated speed, rated voltage, room temperature
|
On voltage
| Below±1%: condition rated voltage ±10%, rated speed, rated load, room temperature
|
On temperature
| elow±1%: Conditions of ambient temperature 0~+40°C rated voltage, rated load and rated speed
|
Power input
| Rated voltage
| V | Single phase 110V
| Single phase 220V | 24VDC(Optiond 36VDC/48VDC) |
Voltage tolerance range
| ±10%
|
Frequency
| Hz | 50/60
| /
|
Frequency tolerance range
| ±5%
| /
|
Rated input current
| A | 3.5
| 2.0
| 6.8
|
Instantaneous maximum input current
| A | 7.0
| 4.5
| 13.0
|
Product Parameters
Company Profile
Zhejiang Jiuhong Motor Co., Ltd. is an enterprise engaged in R&D, production and sales of AC gear motor, water pump, deceleration motors and accessory parts like speed governors etc. The company has a complete and scientific quality management system, as well as professional and technical personnel, perfect processing and production equipment ensuring the high-quality motors production. The company always adheres to the principle of "quality first, customer first" and wins the consistent recognition of the industry with integrity, strength and product quality. ZheJiang Jiuhong motor welcomes your good suggestion, visit and cooperation at any time!
Packaging & Shipping
FAQ
What's delivery time?
It usually takes about 3-5 working days for small order and 10-15 days for big order.
What's your payment terms?
We usually accept all kinds of payment terms,Such asT/T,L/C,Western Union,Cash.
What's your warranty terms?
We offer 24 months warranty time.
Do you have the products in stock?
Depends on your request,We have standard models in stock.Some special products and big order will be newly produced according to your order.
Can I mix different power in one container?
Yes,Different models can be mixed up in one container,even one order.
How does your factory do the quality control?
Quality is prlority,we always attach the importance to quality control from the beginning to the end of the
production.every product will be fully assembled and carefully tested before packing and shipping.
>>
