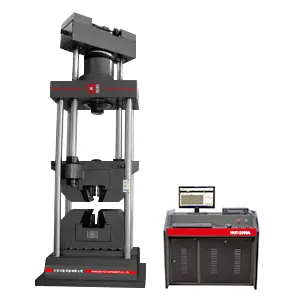

500kn, 1000kn Hydraulic Universal Tensile Testing Machine

Product Description

Electro Hydraulic Servo Static Materials Testing Machines Product Description
Integrated with electro-hydraulic servo automatic control, signal measurement, data acquisition, screen display, test results processing.It's widely applicable for different test methods and different materials, especially for various metal and non-metal material, such as stretch, compression, bending, shearing and low cycle tests etc.It is an ideal material property testing equipment for research institutes, colleges and universities, quality supervision and industrial and mining enterprises.
Features
A.Multi-function integrated pump station, the whole machine structure is greatly optimized.
B.International well-known brands pump set and servo valve, high system reliability.
C.Based on the idea of "comprehensively improving test efficiency", all kinds of tests can be completed quickly.
D.The software system supports multi-language, multi-unit control, multi-test standard
E.Control system based on software, accurate testing, high degree of digitization.
F.Various accessories in stock.
Product Parameters

Model	HUT-300B	HUT-600B		HUT-1000B	HUT-2000B
Capacity	300KN	600 KN		1000 KN	2000 KN
Force range	2%-100%FS.
Test force accuracy	±1%
Max. tensile space	620 mm	690 mm		620 mm	700 mm
Max. compress space	550 mm	620 mm		580 mm	600 mm
Piston stroke	150 mm	150 mm		150 mm	150 mm
Max. test speed	100 mm/min	100 mm/min		75 mm/min	50 mm/min
Column Space	495 mm	570 mm		600 mm	580 mm
Round sample range	Φ10-Φ32 mm	Φ13-Φ40 mm		Φ14-Φ45 mm	Φ20-Φ70 mm
Flat sample clamping thickness	0-15mm	0-30 mm		0-40 mm	0-50 mm
Pressure plates Size	Φ120 mm	170*170 mm		205*205 mm	Φ300 mm
Displacement Resolution	0.01 mm	0.01 mm		0.01 mm	0.01 mm
Deformation resolution	0.001 mm	0.001 mm		0.001 mm	0.001 mm
Grips Type	Hydraulic clamping
Control mode	Electro-hydraulic servo closed loop control: Force, Deformation, Stress, Strain, Displacement etc.
Display	Test force, displacement, deformation, test curve, calibration etc.
Dimension(mm)	800×500×1950		950*630*2265	980×650×2220	1200×850×2900
Weight	2100KG		2600 KG	3500 KG	5000 KG
Power	2.6KW		2.8 KW	3.0 KW	5.0 KW

Pumping station
1.The electro-hydraulic servo drive oil circuit uses Load adaptive fuel inlet throttle loop. Not only the flow is stable and the pressure fluctuation is small, but also the energy consumption of the high-pressure overflow of the system is completely reduced. Therefore, the system can work steadily and reliably all year round without cooling device
2.Both pump station and servo valve use international famous brand products. The system works for a long time stably and reliably. The complete set of pipe fittings adopts the special technology of our company, with excellent performance, reliable sealing and no oil leakage fault.
3.With independent reducing valve- reversing valve composite module realizing hydraulic jaw drive technology, the conflict between hydraulic clamping unit and servo hydraulic unit is solved thoroughly. Simplified operation and improved security.

Model	Model 1	Model 2
Max. working flow	4.31 L/min	7.10 L/min
Max. working pressure	31MPa/40 MPa	28 MPa
Hydraulic grip operating pressure	3-6 MPa	3-6 MPa
Hydraulic grip operating flow	4.31 L/min	7.10 L/min
Filter accuracy	5μ	5μ
Sound level	≤68db
Dimension	1150mm(L)*665mm(W)*860mm(H)
Motor	2.2 KW, Three phase 380V AC	3.0KW, Three phase 380V AC
Servo Valve	ATOS(Optional :BOSC or MOOG)
Pump Set	Italian brand (Original)	Japanese brand (Original)

Certifications
1.ISO 9001-2015 Quality management system certification
2.Registered Mark certificate
3.Member of Shandong Association of Special Equipment
4.Radiation safety permit
5.Member of China Friciton & Sealing Material Association
1.Brake caliper adjusting mechanism for brake real sample friction tester
2.Merchanical performance testing machine for dip net
3.Portable X-ray welding seam detection special bracket
4.Weld seam detection synchronous crawling device
5.A pendulum impact testing machine
6.A Brake pad grinding mechanism
7.A static load testing machine for concrete sleepers
8.A drag testing machine for friction properties of brake lining friction materials
9.Special net rod fixture for fishing gear testing

Company Profile
Packaging & Shipping
FAQ
1.Are you a manufacturer or trading company?
We are manufacturer as well as trading company.
As manufacturer, we have our own R&D team,Software copyright certificate, registered mark and ISO 9001 quality management system certification.
As a trading company, we deal in testing instruments of domestic and international well-known brand as their agent. We can help you apply
2. What is your payment terms?
A: T/T ,L/C at sight,Credit card and so on. Other payment is negotiable
3. What about the lead time?
A: Portable testers and tools: 4-10 days.
Regular testing machines: 10-20 days.
Customized testing machines: 15-40 working days.
4. What about the warranty?
A: One year.
5. What services do you provide?
A: Pre-sales:
We provide solutions and quotation according to customer's demand.
We can customize for customer according their demand and standards.
We accept the sample test from customers.
After-sales:
For portable testing tools, we instruct users to operate by video, telephone and on-line video call.
For testing machines, we send engineers to user's site to install machines and provide training service.

---
