Pulp Paper Equipment Middle Consistency Pressure Screen

Product Description

Product Description
Pressure Screen is an international advanced paper pulp screening equipment for paper mill. Our company adopts advanced technology and designs to produce new type pulp mid consistency screening equipment. The pulp screening equipment Pressure screen is used for wood/straw pulp hot screening and chemical, paper pulp coarse and fine screening.
This pressure screen has better adaptation, less power &water consumption and high efficiency when compared with common low consistency pressure screen.

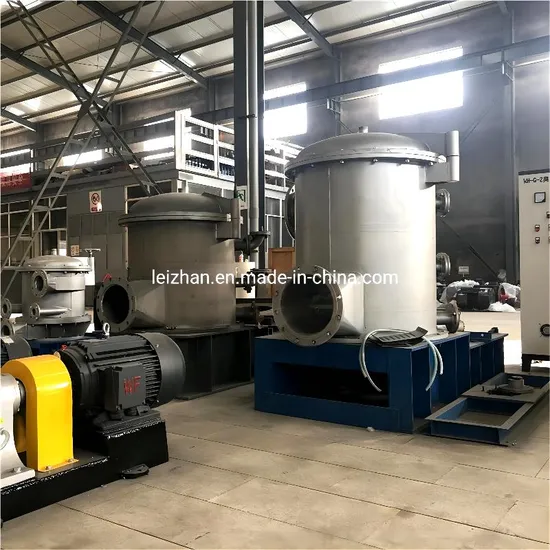

Detailed Photos
Feature of Pressure Screen
1.Under the pressure of centrifugal movement from rotor, the impurity moves around the outside part of screen basket. Since the impurity moves quite far away from screen basket, the service life of screen basket can be increased due to less wear.
2.The pulp rotating movement offsets some part of positive pulse at the moment that it flows through rotor, thus the positive pulse created by the rotor decreases, which results in mild screening of impurity from pulp. 3.Lower pulse help in sending pulp into headbox of paper machine in a stable condition so that the paper machine can run stably and less broken ends can be created.
4.The design of inflow approach screen helps in more througput, lower energy consumption,higher screening efficiency and less rejects.


Product Parameters

LZ	LZ0.6	LZ1.2	LZ1.5	LZ2	LZ2.5	LZ3	LZ3.5	LZ4	LZ4.5		LZ5	LZ6
Screen Area (m2)	0.6	1.2	1.5	2	2.5	3	3.5	4	4.5		5	6
Screen cut scope (mm)	0.15-0.5
Inlet pressure (MPa)	0.1-0.25
Consistency (%)	0.3-1.2
Capacity ( t/d)	15-40	30-90	40-110	55-150	70-160	100-200	130-250	160-300		180-350	200-400	240-500
Motor power(kw)	15-22	18.5-30	22-37	30-45	37-55	45-55	45-75	55-90		55-90	75-110	90-132

Application:
Paper machinery of Pressure screen for waste paper recycling production line is used for the screening of low consistency pulp before the paper machine.It can effectively remove impurities and breakup the pulp materials to increase paper quality. It can be used in fine screen section of DIP deinking system, it is used for removing gooey and ink particles and other impurities.
