Product Details
Product Description
Product Description

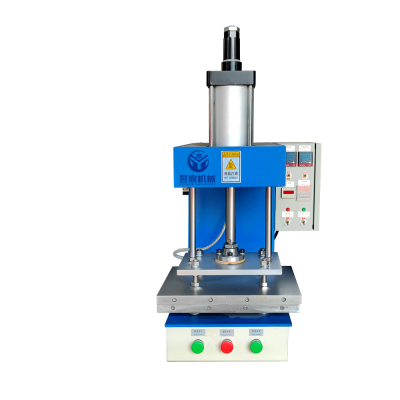

Machine technical parameters
1. Powered by compressed air, the falling speed can be adjusted, and the upward/downward speed of the cylinder can be adjusted
2. Four-column, precise guide sleeve positioning
3, 1 out of 5, forming about 7-8 seconds
4, the mechanical start mode has a double button switch, to ensure the safety of production personnel
5, the cylinder output size can be adjusted through the pressure regulating valve, automatic fuse
6. The upper and lower molds can be heated independently, with automatic constant temperature and a temperature error of plus or
minus 1 degree (used for hot pressing, stamping, imprinting, gilding and printing, etc.)
7. Operating pressure (air pressure) : 4-7kg/cm2; maximum machine stroke :300MM; ensure that the staff will not be scalded
8, adjustable temperature: room temperature -300 degrees arbitrary adjustable up and down independent temperature control
mechanical appearance: W1300*D800*H1700MM
9. Hot pressing time: 0.01s-99.99h;Heating plate area: 200*900MM
10. Power of the whole machine: 8KW power supply voltage: 380V mechanical weight: about 280KG
Other supporting equipment of cup mask:
1. Ultrasonic welding machine -- welding plane
2, cutting machine - to cut off surplus materials
3. Nose bridge welding machine - hot pressing nose bridge
4. Ultrasonic wave band welding machine
>>
