Particle Sizing Impact Jaw Crusher Machine for Stone Gh-400

Product Description

particle sizing impact jaw Crusher Machine for stone Gh-400
Product Description

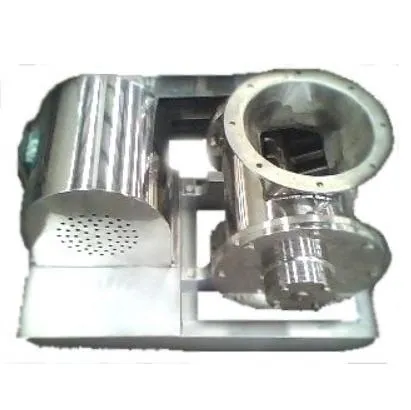

This machine is primarily composed of a body and a crushing disk assembly. The crushing disk is directly driven by a motor, resulting in a high crushing linear speed. The crushing disk is equipped with multiple rows of crushing blades, and several fixed blades are installed on both sides of the body, with a certain spacing maintained between the crushing blades and the fixed blades. This machine is installed and connected to a vertical pipeline. When materials enter the cavity, they are broken under the impact of the high-speed rotating crushing blades, effectively breaking up viscous and agglomerated materials. This equipment is suitable for breaking up agglomerated materials and can also be used as a coarse crusher after material feeding.

Scope of Application
It has a wide range of applications in industries such as dyes, pigments, pesticides, chemicals, and food, making it an ideal pre-crushing equipment for use in production lines. It can be operated using both dry and wet methods.

Product Parameters

Model Parameters	GH-100	GH-200	GH-250	GH-400
Motor Power (KW)	1.5	2.2	2.2	5.5
Tube diameter (mm)	100	200	250	400*400
Spindle speed (r/min)	1450	1450	1450	960
Weight (kg)	140	160	250	350
Dimensions(mm) L*B*W	810*550*500	710*500*450	740*350*500	1100*400*400
