8 Heating Section Continuous Wood Roller Core Veneer Dryer Machine for Plywood

Product Description

Hot press type wood veneer machine price roller type veneer dryer for plywood making
Product Description
Wood Veneer Dryer Machine for plywood/veneer Factory
This machine is main machine for plywood production,it's used for peeled veneer drying.
It includes mesh, roller and mesh & roller type, can be customized according to your requirements.
It can dry veneers of various thickness and moisture contents. Any wood spices can be dried in this machine.
It's high efficiency, saving energy and improving the veneer quality.
The working layers quantity can be designed according to client's requirement or Drying capacity!.
New technology and advanced PLC controlling system!
Product Parameters

Name and Model	GTDM1333-10+3	GTDM1332-13+3	GTDM1343-15+2
Working width	2800mm	3400mm	3500mm
Working layers	3	2	4
Length of heating section	20000mm	13×2000mm=26000mm	15×2000=30000
Length of cooling section	6000mm	3×2000=6000mm	2×2000=4000
Total power	155.7kw	128.5kw	280.2kw
Transport motor	7.5kw×3=22.5kw	11kw×2=22kw	18.5kw×2=37kw
Heating motor	11kw×10=110kw	7.5kw×13=97.5kw	15kw×15=225kw
Cooling motor	4kw×3+3kw×3=21kw	3kw×3=9kw	4kw×2+4kw×2=16kw
Output power	2.2kw×1=2.2kw	2.2kw×1=2.2kw	2.2kw×1=2.2kw
Veneer transportation speed	1.5~15 m/min	1.5~15m/min	1.5~15m/min
Saturated steam pressure	0.6~1.0 Mpa	0.6~1.0 Mpa	0.6~1.0 Mpa
Drying temperature	150~170 ºC	150~170 ºC/170-190 ºC	170-190 ºC
Steam consumption	3300 kg/h	3000 kg/h	3600kg/h
Veneer density	~620 kg/m³	~620 kg/m³	~590 kg/m³
Available veneer thickness	1.5~3.5mm	1.5~3.5mm	1.5~4.5 mm
Veneer initial moisture content	~80%	~80%	50-60 %
Veneer final moisture content	6 ±2%	6 ±2%	10-20 %
Load ratio	85%	85%	85%
Drying capacity	2.6~2.9m³/h	2.5~2.8m³/h	~6.7 m³/h
Roller spacing	333mm	333mm	333mm
Overall dimension(L*W*H)	45620×5150×4150mm	43820×5050×2800mm	52720×5850×4720mm
Total weight	~79000kg	~73000	~132000

Packaging & Shipping

Our Other Products

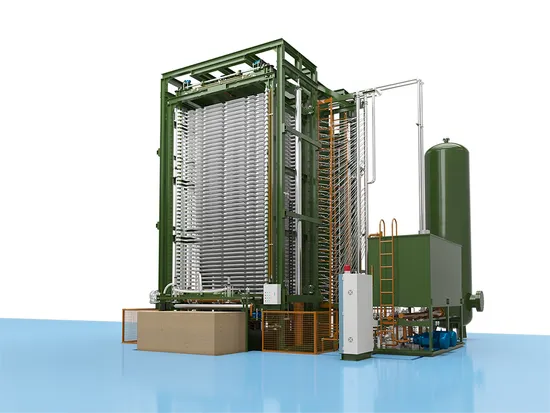

Plywood hot press machine for plywood production
Rotary veneer peeling lathe, veneer peeler, wood veneer peeling machine.
Log debarker is used for removing barks before veneer peeling machine.
Veneer stacker, save two labors, connecting with veneer peeling machine, automatic sorting wood veneer, high efficiency.
Plywood panel trimming saw, panel edge cutting saw, its function is cutting four edges of plywood, make plywood edge tidiness and smoothly.
The operating system is accurately controlled by PLC to achieve the high precision sawing size and automatic stacking, reduce the labor's intensity.
Glue spreader
Glue spreader is used for man-made panel factory, furniture factory laminating, panel substrate single or double sides coating. And use quality nature rubber, proper hardness, abrasive ability and long life.

After Sales Service
Pre-sale service
1) Provide the free consultation of equipment 2) Provide the standard device and the flow chart
3) According to the clients' special requirement ,offering the resonable plan and free design to help to select the equipment .
4)Welcome to visit our factory Service during the sales1) Inspect the machine before leaving the factory 2) Oversea install and debug the equipment
3) Train the first-line operator After sales service 1) 24 hours online service
2) Provide the VIDEO with install and debug the equipment
3) Provide technical exchanging.
Welcome to contact with JETHEA SONG!

---
