Basic Info.
Performance
Efficient Filtration
Certification
CE, GS, RoHS
Material
Nylon, PP, PE, Nmo
Top
Ss Ring, Plastic Ring etc.
Body
Sewing Thread, Hot-Melt
Specification
as your requirement
Production Capacity
100, 000.00PCS
Packaging & Delivery
Package Size
25.00cm * 25.00cm * 15.00cm
Package Gross Weight
1.000kg
Product Description

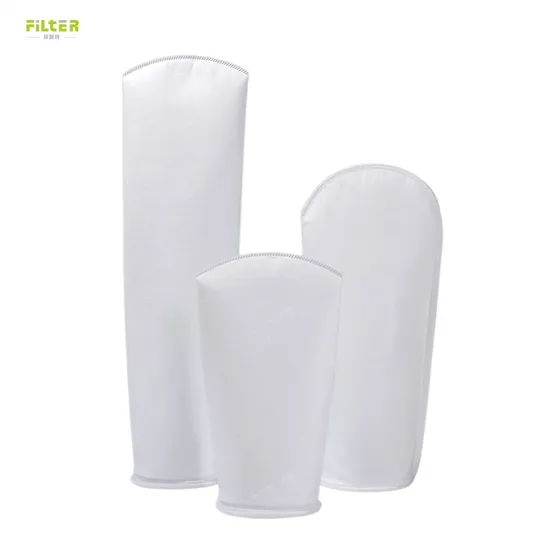

1 5 10 25 50 100 150 Micron Liquid Industrial Nylon PP Polyester Filter Mesh:
1. Product Describtion:Nylon filter bag: remove the filter aid in beer and filtration and remove of cooking oir has been burning fat, tin coating filter, supplement water filtration.
Advantage: Simple operation, increase the work efficiency, increase product quality, reduce the cost of filtration.Polyester & PP filter bag:
* Polypropylene and polyester materials meet regulations for food.* Silicone-free construction.* High dirt holding capacity.* Ability to remove both solid and gelatinous particles.* Low cost.* Glazed/singed finish on Polypropylene & Polyester reduces fiber-shedding.2. Specifications:
1) Open top for easy cleaning
2) Hanging loop
3) Use for making different beverage, such as juice.
4) Shape,Size can be customized.
3.Liquid Filter Bag Technical Data:
| Bag Construction | Filter Media | Micron(μm) | Top Design | Bottom Design |
Sewing Thread Hot-melt | PE,PO/PP,NMO | 1,5,10,25,50,80,100,125, 150,200,250,300,400,600, 800,1200,2500 | Zinc-plated SS304 Plastic Ring | Round or Square |
| Item | Specifications(mm) | Material | Micron(µm) | Technology | Ring Material |
| 01 | 180*430 | Nylon | 1-1200um | sewn | SDS/PP |
| 02 | 180*810 | Nylon | 1-1200um | Sewn | SDS/PP |
| 03 | 105*230 | Nylon | 1-1200um | Sewn | SDS/PP |
| 04 | 105*380 | Nylon | 1-1200um | Sewn | SDS/PP |
| 05 | 155*560 | Nylon | 1-1200um | Sewn | SDS/pp |
Filter Bag Material Performance Table
| Filter Media | Temp.(oC) | Strong Acid | Weak Acid | Strong Alkaline | Weak Alkaline | Oils and Fats | Glycol Ether | Organic Solution | Water Microorganism | Aromatic |
| PE | 150~170 | | √ | | | √ | √ | √ | √ | √ |
| PO/PP | 90~110 | √ | √ | √ | √ | √ | | √ | √ | √ |
| NMO | 150~170 | | | √ | √ | √ | | √ | √ | |
| PTFE | 250~300 | √ | √ | √ | √ | √ | √ | √ | √ | √ |
Filter Diameter Reference Table:
| Mesh | 30 | 35 | 40 | 45 | 50 | 60 | 70 | 80 | 100 | 120 | 140 | 170 | 200 | 230 | 270 | 325 | 400 | 425 | 500 | 625 | 800 | 1250 | 2500 | 6250 | 12500 |
| μm | 595 | 500 | 420 | 354 | 297 | 250 | 210 | 177 | 149 | 125 | 105 | 88 | 74 | 63 | 53 | 44 | 37 | 33 | 25 | 20 | 15 | 10 | 5 | 2 | 1 |
The Chemical Resistance of Liquid Filter Bag:
| The Chemical Resistance Of Liquid Filter Bag |
| Fiber Material | Polyester (PE) | Nylon (NMO) | Polypropylene (PP) |
| Abrasion Resistance | Very Good | Excellent | Very Good |
| Weakly Acid | Very Good | General | Excellent |
| Strongly Acid | Good | Poor | Excellent |
| Weakly Alkali | Good | Excellent | Excellent |
| Strongly Alkali | Poor | Excellent | Excellent |
| Solvent | Good | Good | General |
Producing Process(Air Filter Bag and Liquid Filter Bag):
Applications:
Application:
More Production:
Packaging & Delivery:
Exhibization:
Certificate:
Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
Shipping Details:
SHIPPING (Normally arrive port time in working days)
|
| Destination | Express/Courier | SHIP BY SEA | SHIP BY AIR | SHIP BY EMS |
| DHL/FEDEX/UPS/TNT |
| North America | 3~7 days | 15~24 days | 5~7 days | 10~12 days |
| South America | 3~7 days | 15~25 days | 5~7 days | 10~12 days |
| European Countries | 3~7 days | 20~30 days | 5~7 days | 10~12 days |
| Africa Countries | 3~7 days | 40~50 days | 5~7 days | 10~12 days |
| The Middle East | 3~7 days | 15~25 days | 5~7 days | 10~12 days |
| Australia | 3~7 days | 10~15 days | 5~7 days | 10~12 days |
>>
