Fully Automatic Continuous Cutting Production Line for Marble Granite Tiles Cement Products

Product Description

Product Description DAFON automatic line-cutting machine
Features: 1. The PLC control system is adopted, and the operating parameters (including cutting size specifications, moving speed, etc.) are input through the man-machine dialogue interface, and the cutting process is automated and programmed.2. Use the infrared tool setting to confirm the position of the workpiece and arrange the processed products3. The whole machine is a one-piece frame, which is suitable for foundations of various natures, and it is more convenient to install and install.4. The hydraulic control table The table panel can be turned vertically 85°.5. The diamond disc saw blade with a maximum size not exceeding ¢400 can be hung6. The lifting and lowering of the machine head are driven by hydraulic pressure, and the machine head can be turned 45° around the Z axis so that the cutting tool can be rotated 45°.7. For horizontal and vertical slicing, the magnetic grid is used to detect the length of the slicing
Technical Parameters:

NO	Item	Motor Power	Transmission	Size(long*width)	Remark
1	Feeding rack	Transmission motor 1.5kw	roller	4x1.2m
2	Edge Slicing machine	Transmission motor 1.5kw main motor 22kw	roller	9x3m	Saw blade diameter φ450 Hydraulic lift to adjust saw blade height
3	transition frame1	Transmission motor 1.5kw	roller	6x1.2m
4	Slicing machine 1	Transmission motor 1.5kw main motor 45kw hydraulic motor 2.2kw	conveyor belt	5x3m	Saw blade diameter φ450, up to 10 saw blades Hydraulic lift to adjust saw blade height Hydraulically justified
5	transition frame2	Transmission motor 0.75kw	roller	3x1.2m
6	90°transition frame	Transmission motor 0.75kw	roller, conveyor belt	3x2.5m	Hydraulic lifting synchronous belt
7	transition frame3	Transmission motor 0.75kw	conveyor belt	2x2m
8	Slicing machine 2	Transmission motor 1.5kw main motor 65kw hydraulic motor 2.2kw	conveyor belt	4.5x3.4m	Saw blade diameter φ450, up to 16 saw blades Hydraulic triangle adjustment saw blade height Hydraulically justified
9	Out rack	Transmission motor 0.75kw	conveyor belt	3x1.2m

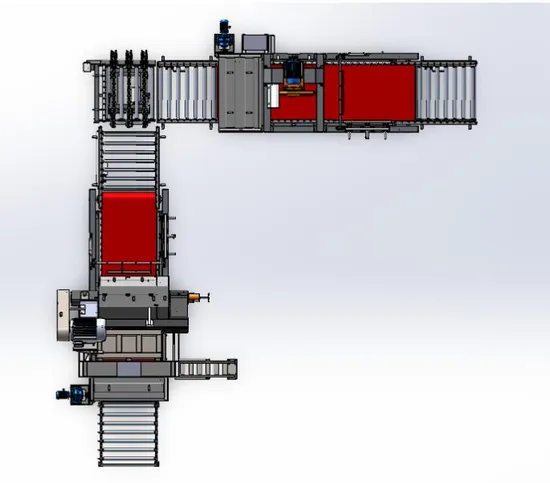

Details Images
1.
2.3.

Factory Exhibitions


After Sales Service:
We provide skilled and rich experience technicians for installation and after-sale service.

Pre-Sales Service * Inquiry and consulting support. * Configure the best machine line according to customer condition * View our Factory.

After-Sales Service * Training on how to install the machine, training how to use the machine. * Engineers available to service machinery overseas. * Lifetime technology maintenance in free and spare parts supply. Related Products

Packaging & Shipping
The machine will be consolidated tightly and safely within the container and delivered by sea or railway, we offer fast delivery and prompt reaction.

FAQ:
Q: How do I install and operate the machine, after receiving it?
A: For simple machines, we will provide sufficient installation, operation, and maintenance instructions, and videos, which will make the whole thing as simple as possible for users. For high-tech machines, our engineers can fly abroad to help you install & debug the machine, and teach you how to operate and maintain the machine properly in the future.

Q: Manufacturer Profiles
A: We are the Top 10 stone-cutting machine manufacturers with ISO & CE certificates since 1985.

Q: We own 70% of China's market share in the special shape stone cutting machine series.
A: We are a company which is especially for producing stone machines for exporting.

Q: Quality Control
A: We have our own experienced QC. Our machine will be strictly inspected. We will provide a Testing Video for each machine before shipping out if required by the customer.

Q: Delivery time
A: Based on order quantity, normally three weeks against payment.
Hot Tags: bridge block cutting machine for granite, China, manufacturers, suppliers, factory, price, buy discount
DAFON Machinery is located in Quanzhou City, the hometown of overseas Chinese in southern Fujian Province, we are a professional stone machinery company that integrates design, manufacture, and sale as a whole. We mainly produce curbstone assembly line machines, infrared trimming machines, automatic trimming machines, infrared middle block cutting machines, single-arm multi-blades cutting machines, large gantry cutting machines, bridge stone cutting machines, mining machines, and all sorts of stone cutting machines.

---
