4 8 16 18 Channel Wdm CWDM DWDM Mux Demux Module

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
JCMX-XXXX-02D
Support Network
Ethernet
Information content
Data
Certification
CE, ISO, RoHS, GS
Condition
New
Access Type
Dual Fiber
Channels
2
Exp
Optional
Mon
Optional
Packaging
1u Chassis / Lgx Package Optiona
Dimension
44X483X250mm
Insertion Loss Il
< 1.2dB
Mux+Demux Il
< 2.1dB
Center Wavelength
1270-1610nm
Channel Spacing
20GHz
Channel Flatness
< 0.4mm
Channel Bandwidth
+/- 6.5mm
Channel Uniformity
< 1.0dB
Adjacent Channel Isolation
> 30dB
Return Loss
> 50dB
Specification
0.03KG/EA
Trademark
Jeetronics
Origin
China
HS Code
8517795000
Production Capacity
2500pieces/Day

Product Description

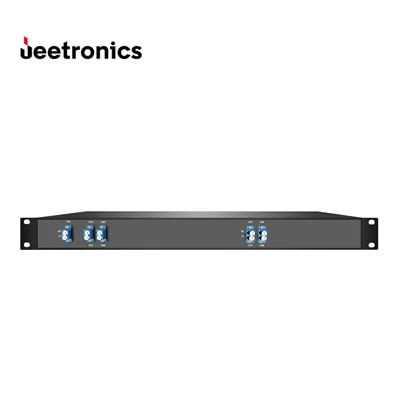

JCMX-XXXX-02D 2 Channels CWDM MUX/DEMUX 1U Chassis / LGX Package Optional system 1270-1610nm Wavelength Optional Compliant to ITU G.694.2 and G.695 Multiplexing of up to 2 CWDM wavelengths Protocol transparent, support 1G, 10G, 100G etc Low insertion loss LC/UPC connectors Passive, no electric power is required High stability and reliability 19" 1U Rackmount system Custom design supported
Other Fiber Optical Transceiver model you may like:
P/N Category Access Type EXP MON Channels Wavelength Packaging
JCMX-XXXX-02D CWDM MUX/DEMUX Dual Fiber Optional Optional 2 1270-1610nm(Optional) 1U Chassis / LGX Package Optional
JCMX-XXXX-04D CWDM MUX/DEMUX Dual Fiber Optional Optional 4 1270-1610nm(Optional) 1U Chassis / LGX Package Optional
JCMX-XXXX-08D CWDM MUX/DEMUX Dual Fiber Optional Optional 8 1270-1610nm(Optional) 1U Chassis / LGX Package Optional
JCMX-XXXX-16D CWDM MUX/DEMUX Dual Fiber Optional Optional 16 1270-1610nm(Optional) 1U Chassis
JCMX-XXXX-18D CWDM MUX/DEMUX Dual Fiber Optional Optional 18 1270-1610nm(Optional) 1U Chassis
