Wholesale China Factory Supply FTTH Drop Cable LSZH Anatel

Product Description

Wholesale China factory supply FTTH drop cable LSZH Anatel Characteristics
· Good mechanical and enviromental characteristic
· Anti-UV charateristics meet the requirements of relevant standards
· The mechanical charateristics meet the requirements of relevant standards
· Soft ,flexiable ,easy to lay and splice,and with big capacity data transmission
· Meet various requirements of market and clients

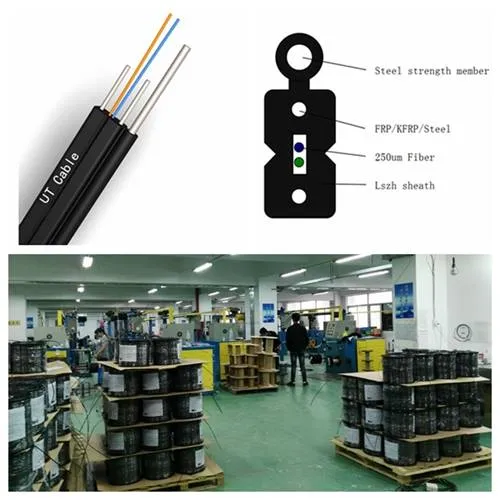

Specifications Cable construction details :

Numberof fiber	1~24core
strength member		Material	Galvanized steel wire/FRP/KFRP
		diameter	2*(0.5~0.8)mm
Self support Messenger wire		Material	Galvanized steel wire
		diameter	1.0mm
Outer sheath		material	LSZH
		diameter	1.8±0.2mm
Cable size (Height * width)		2.0(±0.1) mm × 5.2(±0.2)mm
Cable sheath thickness		Max. 0.8mm/Min. 0.4mm
Messenger sheath thickness		0.5~0.7mm
Cable weight		1~2core	18.2KG
		4~6core	18.5KG
		8~24core	54.0KG

Cable Mechanical characteristic

Items		Description
Installation Temperature range(ºC)		-20+60
Operation and transport temperature(ºC)		-40+70
Min Bending Radius(mm)	Long term	15D
Min Bending Radius(mm)	Short term	30D
Min allowable Tensile Strength(N)	Long term	300
Min allowable Tensile Strength(N)	Short term	600
Crush Load (N/100mm)	Long term	1000
Crush Load (N/100mm)	short term	220

---
