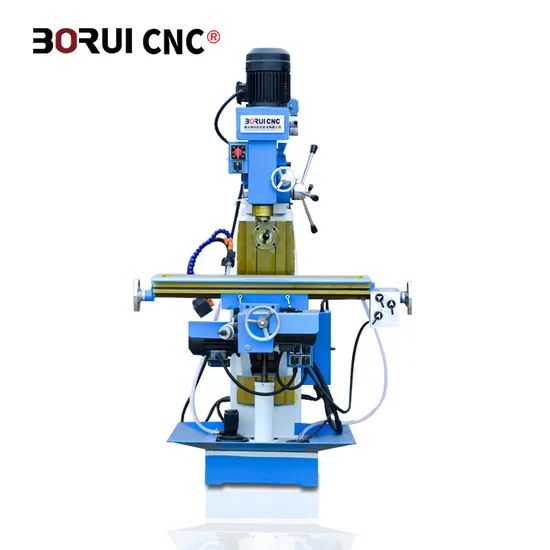

Zx7550cw Vertical Horizontal Turret Drilling and Milling Machine

Product Description

Low Price of Electric Vertical Horizontal Turret Drilling and Milling Machine Product Description
The machine is suitable for all kinds of small and medium parts processing, especially non-ferrous metal materials; Plastic; The cutting of nylon has the advantages of simple structure and flexible operation. It is widely used in single or batch machine manufacturing. Instrument industry; Building decoration and repair department.
The main performance characteristics:
1.Uses standardized assemblies from the VH milling machine universal use as milling machines and drill press
2.Easily shiftable gear drive ensures power transmission without losses
3.With V-belt spindle drive and gear spindle drive
4.Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the spindle quill
The main performance Advantages:
1.Three axis hardened treatment, high rigidity.
2.vertical horizontal multi-functional ,drilling ,milling, boring operation.
3.X axis mechanical feed,Y.Z axis can be added the device
4.Gear transmission milling head, stable transmission, compact structure ,easy maintenance, easy to operate
The main specification:

Model	ZX7550	ZX7550CW	ZX7550C	ZX7550W
Max.drilling dia (mm)	50	50	50	50
Max.horizontal milling dia (mm)	100	100	100	100
Max.vertical milling dia (mm)	25	25	25	25
Max.boring dia (mm)	120	120	120	120
Max.tapping dia	M16	M16	M16	M16(Vertical)
Distance.spindle to table surface (mm)	140-490	90-490	90-490	80-460
Spindle speeds range (r.p.m)	230-1825	(Vertical)115-1750 (Horizontal)60-1350	115-1750	230-1825(Vertical) 80-1300(horizontal)
Spindle travel	120	120	120	120
Table size (mm)	800×240	800×240	800×240	800x240
Table travel (mm)	400×230	400×230	400×230	400x230
Overall dimensions (mm)	1100×1100×2080	1280×1100×2080	1100×1100×2080	1280×1100×2080
Motor (Kw)	0.85/1.5	( Vertical)0.85/1.5 (horizontal)2.2	0.85/1.5	0.85/1.5(Vertical) 1.1(horizontal)
N.W/G.W (Kg)	610/770	850/1000	610/770	700/880

Standard Configuration:
·Mill chuck
·Drill chuck
·Inner hexagon spanner
·Work light
·Spindle arbor
·Wrench

·Mchine vice

· Horizontal milling arbor
Optional configuration:
·DRO on X, Y, Z--AXIS
·Clamping kit
·Universal dividing head
·Rotary work table.
Details Display
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Profile
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools

FAQ
1)Q: Which trade term I can choose?
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
2)Q: How can I get quotation from you?
A: You can make the inquiry online on ******, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
3)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
4)Q:How can I make the payment?
A: We can make the deal on ****** online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
5)Q: How long does it take to get machine?
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
6)Q:How about warranty?
A: warranty is one year, but we will offer lifetime service for machine.

---
