312 Roof Ridge Cap Steel Panel Glazed Tiles Roll Forming Making Machine

Product Description

312 Roof Ridge Cap Steel Panel Glazed Tiles Roll Forming Making Machine It consists of feeding platform, main molding core, shearing mechanism, hydraulic station, computer control cabinet, glazed tile roll forming machine, high precision counter and so on.
Advantages of this ridge cap machine
lower cost
high efficiency
reliable working
low energy consumption
1.Panel drawing according to customer request .
2.Equipment technical parameters

Suitable raw material	PPGI/PPGL/GI/GL Steel Coils
Thickness of coil sheet	0.3-0.8mm
Feeding Coil width	415mm
Effective width	312mm
Under frame	350H-beam
Diameter of Soild shaft	70mm, high grade 45# steel, finish turning, cylindrical grinding, with keyway
Roller	High grade 45# steel, processed by CNC lathe, Quenched and tempered treatment, hard chrome coated 0.05-0.07mm
Thickness of middle plate	Guide pillar memorial archway
Forming stations	16
Drive type	By chain(1.0 inch) link bearing model 6210
Power of main motor	5.5kw with Cycloidal reducer, Lichao, Shanghai
Power of pump station	3kw, Lichao, Shanghai
Forming speed	About 15-20m/min
Hydraulic cutting	Controlled by PLC
PLC	DELTA, TAIWAN / Mitsubishi, Japan
Material of cutting blade	Cr12Mov, quenching 58-62ºC
Frequency converter	It has the advantage of slowing down before cutting, to ensure the length accuracy(±1mm, far better than industrial standard ±3mm).
Switch	CHNT
Transducer	SAJ

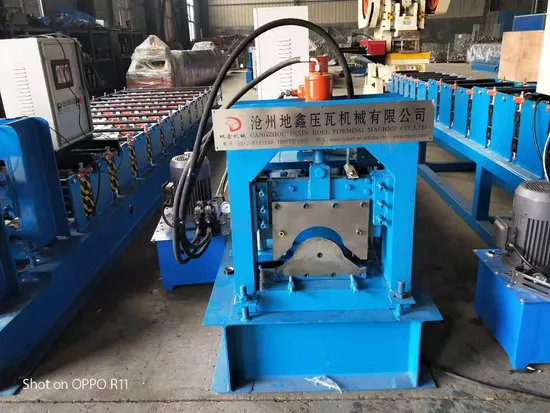

3.some machine pictures
Packing and shipping details
1. Machines need one 20/40 feet container to load .
2.We have professional technicians for loading to make sure machine has no damage.
3.Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.
Cangzhou Dixin Roll Forming Machine Co.,ltd is a professional manufacturer and exporter which has its own factory and also cooperate with several production factories and associated enterprises, concerning with the design, development and production of cold roll forming machines,material of building. We specialize in the automated production line of sheet cold roll forming machines. We are able to provide an integral resolution schema of cold roll forming system through a combination of advanced system design and equipment. Based on our advanced research and commercial team, we are able to research and development, manufacturing and sale of standard and non-standard cold roll forming equipment for our clients world widely.
we can produce the machine according to customers request. please provide us your own design.some ours profile for your choose .
Our company has always been adhering to the principle of integrity first, quality first, over the years, we have always put quality and reputation in the first place, every machine, our technical staff choose the best quality raw materials, because good raw materials can produce high-quality machines,And our company has passed the quality certification and testing,We believe that your choice is correct, because our company will never let our customers down.


Quality first, service first, your satisfaction is the driving force of our progress.

---
