Cheap Low Cost Metal Hydraulic Radial Drilling Machine(Drill Z3050X16 )

Product Description

Cheap Low Cost Metal Hydraulic Radial Drilling Machine(Drill Z3050X16 )
Product Description
The main performance characteristics:
Mechanical transmission
Mechanical clamping
Mechanical speed
Automatic take-off and landing
Automatic feed Product Parameters
Product main technical parameters

SPECIFICATIONS	Z3050×16
Max.drilling dia (mm)	50
Distance from spindle nose to table surface(mm)	320-1240
Distance between spindle axis and column surface (mm)	350-1640
Spindle travel (mm)	315
Spindle cone(MT)	5
Spindle speeds range (r.p.m)	25-2000
Spindle speed step	16
Spindle feeding range(r.p.m)	0.04-3.2
Spindle feeding step	16
Rocker rotary angle (°)	±90°
Main motor power (kw)	4
Movements motor power (kw)	1.5
Weight (kg)	3500
Overall dimensions (mm)	2500×1060×2800

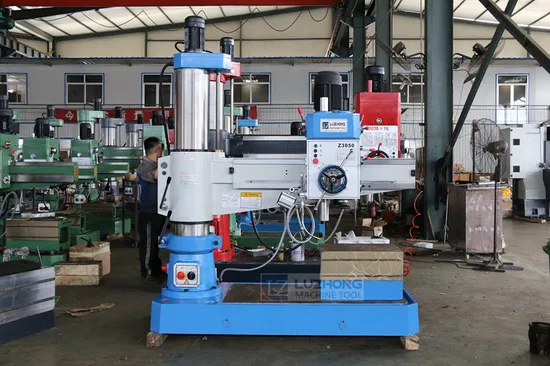

Detailed Photos
Company Information
FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
