Basic Info.
Machining Process
Welded Molding Machine
Vibrating Amplitude
2.4mm
Certification
ISO9001: 2000, CE
Name
Planetary Concrete Mixer
Planet/Blade(Nr) One Mixing Shaft with T
2
Discharging Scraper(Nr)
1
Dimension (L*W*H, mm)
2230*2080*1880
Transport Package
Laminated Packaging
Specification
accordingly
Production Capacity
5000 Sets/Month
Product Description

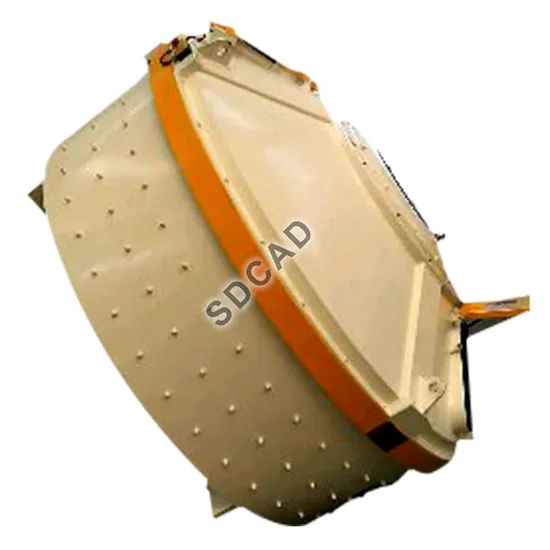

Brief Description Of Planetary Concrete Mixer
MP series planetary concrete mixer used for mixing concrete .Planetary Concrete Mixers widely apply to produce precast concrete, common commercial concrete and high performance concrete.
It is suitable for mixing dry hard concrete. It's widely used in the production of building blocks and prefabricated parts, and also can be used to produce of steel fiber reinforced concrete, colorconcrete and dry mortar, etc.
Mixing Locus Diagrams
This diagrams show the perfect mixing action of the planetary mixer from 5 to 60 seconds after material is added. Note that the floor is completely swept by the mixing stars action every 4 revolutions (6 seconds) and that each zone is covered at regular intervals in time.
| Reduction Gearbox | Maintenance Acccess | Mixing Device |
| The hydraulic power unit | Hydraulic unit | Water spray pipe |
| Model | MP330 | MP750 | MP1 000 | MP1 500 | MP2000 | MP2500 | MP3000 |
| Output Capacity (L) | 330 | 750 | 1000 | 1500 | 2000 | 2500 | 3000 |
| Input Capacity (L) | 500 | 1125 | 1500 | 2250 | 3000 | 3750 | 4500 |
| Input Mass (kg) | 800 | 1800 | 2400 | 3600 | 4800 | 6000 | 7200 |
| Mixing Power (kw) | 15 | 30 | 37 | 55 | 75 | 90 | 110 |
| Lifting Power (kw) | 4 | 7.5 | 11 | 15 | 22 | -- | -- |
| Skipper Capacity (L) | 580 | 1300 | 1740 | 2610 | 3480 | -- | -- |
| Skipper Mass (kg) | 870 | 1950 | 2610 | 3615 | 5220 | -- | -- |
| Weight (kg) | 170 | 3500 | 6000 | 7000 | 8500 | 10500 | 11000 |
| Dimension (mm) | 1910 *
1590*
1747 | 2581*
2336 *
2195 | 2891*
2602*
2217 | 3223*
2902*
2425 | 3625*
3230*
2630 | 2893*
3550*
2695 | 3893*
3550*
2975 |
