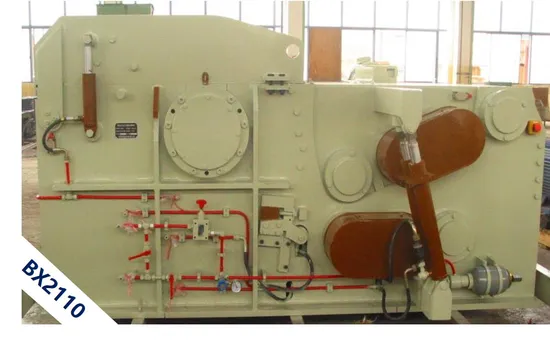

1000 mm Rotor Diameter Drum Chipper with Capacity of 75 M³ /H

Product Description

Product Description
Our company carries forth a prestigious legacy in the manufacturing of precision drum chippers, renowned for their unparalleled performance, superior craftsmanship, and a comprehensive array of benefits that resonate with both domestic and international clientele. This specialized machinery is a cornerstone in various industrial landscapes, including the paper, particleboard, fiberboard, and wood processing sectors, where it consistently delivers high-quality, uniformly sized chips.
Our drum chippers are meticulously engineered to transform logs, small timber, branches, twigs, planks, and similar materials into precision-cut chips, tailored to the exact specifications demanded by the paper mill and panel board industries. We understand the nuances of each application and have therefore incorporated adjustable chip length capabilities, ensuring optimal performance across diverse production requirements.
In a continuous effort to stay ahead of the curve, we have recently undertaken a strategic upgrade of our drum chipper portfolio, introducing enhanced models that embody the pinnacle of technological advancements and reliability. These upgrades solidify our position as a trusted partner for global chip production, offering solutions that are not just efficient but also financially prudent for our clients.
Economic and technical data

Specifcations/Model	BX2110
Rotor diameter (mm)	1000
Number of rotor knives (pieces)	2x2
Feed opening (mm)	330x1050
Max diameter of raw material (mm)	210
Chip length (mm)	30
Capacity (m3/h)	75
Main drive motor power (kW)	220
Feed roller motor power (kW)	7.5x2
Pump motor power (kW)	2.2
Machine net weight (kg)	12500
Overall dimension/LxWxH (mm)	4340x3550x1500

Main compose
The robust machine foundation boasts a welded construction reinforced by high-strength steel plates, providing a steadfast support for the entire machinery.
The cutting blades, configured in a versatile manner with 2, 3, or 4 options, are securely mounted to the roller utilizing specialized knife bolts and a clamping plate system. The upper feed roller assembly, harnessing the power of the hydraulic system, dynamically adjusts its position over the material to be processed, floating up or down within a predetermined range in response to the material's thickness. Once the wood chips traverse through the screening apertures, they are expelled from the machine's base. Any oversized chips are automatically redirected for further chipping within the machine itself.
The sophisticated hydraulic system serves as the heart of the operation, with the oil pump efficiently supplying pressurized oil to the cylinders. This not only facilitates the seamless opening of the drum cover for swift blade replacement but also effortlessly elevates the upper feed roller, streamlining the clearance adjustment process between the rotor and bed knives. Furthermore, it simplifies the task of swapping out the comb plate, enhancing overall maintenance efficiency.
Main characteristics
Versatile Processing Capabilities: Our drum chipper showcases unparalleled adaptability, proficiently tackling a diverse array of raw materials, encompassing both wood and non-wood varieties.
Comprehensive Quality Oversight: From inception to post-sales support, we uphold stringent quality protocols. Drawing on decades of expertise and adhering to rigorous industry benchmarks, we meticulously curate our raw materials and enforce meticulous quality checks on every outsourced component. Incorporating premium, globally renowned electrical and hydraulic systems, coupled with the utilization of large-scale, precision machinery, we guarantee the manufacture of exceptional quality chippers.
Cost-Efficient Design: The chipper's innovative design emphasizes ease of maintenance, enabling swift and hassle-free upkeep that ultimately translates to reduced operational expenses for our valued customers.

---
