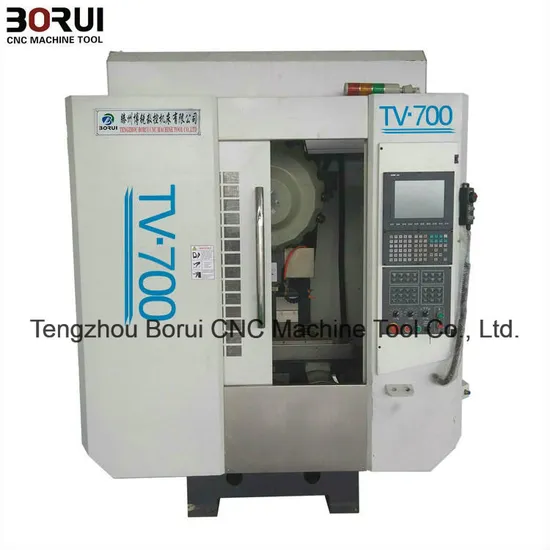

TV700 Economic Taiwan Spindle CNC Drilling and Tapping Center

Product Description

TV500 Mini cnc tapping center for sale with good price

Product Description


Product main features and uses:
Such high speed 3 axis cnc tapping center hasfollowing features:
1. the foundation, column, main spindle box, cross sliding table, worktable and other parts were designed with high strength casting technology.
2. the inner metallographic structure is very steady.
3. the casting parts show rational geometry composition through machine tool kinetics and finite element analysis.
4. the basic parts have high steel nature by collocating with the reinforcing rib.
5. with the wide foundation, box-shaped cavity column, broaden & lengthening sliding base and advanced design of mechanics of materials, the weight capacity can be ensured.
6. High speed and high precision spindle, max. can be 20000rpm:
7. CE Standard and CE Certificate;
Product main technical specification:

Model		Terms	TV700
Capacity	X-axis Travel	mm	700
	y-axis Travel	mm	400
	Z-axis Travel	mm	300
	Spindle nose to table surface mm	mm	150-480
	Table T slot size (No. - width-pitch)	mm	3*14*125
Spindle	Spindle Speed	rpm	200-20000,15000,12000
A.T.C	Magazine type	Armless type
	Magazine capactiy	BT30-16T
	MAX.Tool length	mm	200
	MAX.Tool weigh	kg	4
Motor	pindle power(30-minute stop-motion)	kw	3.7/5.5
	X/Y/Z-axis motor power	kw	12/12/12
Worktable	Table size	mm	900*420
	Worktable-Loading	kg	300
Fast Rapid	X-axis fast rapid	m/min	48
	Y-axis fast rapid	m/min	48
	Z-axis fast rapid	m/min	48
	Cutting feed rate	Mm/min	10
Accuracy	Positioning accuracy	mm	±0.01
	Repeatability positioning accuracy	mm	±0.005
Controller	FANUC-0i Mate/Mitsubishi
Machine size	Weight	kg	3700
	Power demand	KVA	15
	Overall Siz	mm	2060*2580*2450
	Tank capacity	L	150
	Air pressure required	Kgf/cm²	5-7

Standard accessories:
Turret tool magezine Automatic lubrication system
Cooling system Full splash guard
Pneumatic system Stainless syeel protection draw plate
Lighting system System:SIEMENS GSK FANUC (optional)
Three-color alarm lamp Fixed bolt
Optional accessories:
Air condition Cool-heat exchanger
Workpiece inspection Tool detection
Forth axis
Raoid feed speed:48/48/48 m/min
