US$55.00-60.00
|
10 Pieces
(MOQ)
|
Basic Info.
Optical Zoom
Without Optical Zoom
Spectral Rrange
Infrared Camera
Product Positioning
Professional
Product Name
5.0megapixels USB Camera for ATM
Sensor
5.0 Megapixels 1/4 CMOS
Sensitivity
0.49V/Lux-Sec(550nm)
Transport Package
Bubble Bag and Standard Exprot Carton
Specification
ISO 9000; CE, FCC, RoHS
Production Capacity
1000PCS/Month
Product Description

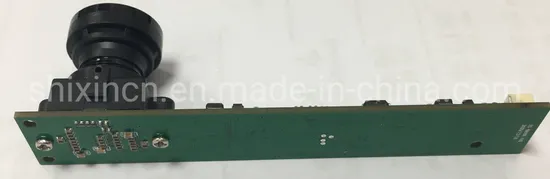

4K HD Camera 8.0Megapixels USB Module Camera (SX-6800H)
USB 8.0 Megapixel Camera
IMX415 CMOS Sensor
8.0 megapixel resolution
Resolution: 3840*2160
Frame rate: @25fps (3840*2160)
@25fps (1920*1080)
Pixel size 1.45um X 1.45um
Color balance: Auto White Balance/Auto Exposure/Auto Gain
Dimension: 16mm*90mm
Interface: USB2.0(no need external power)
Software: Capture software, free driver
Application: ATM, Portable scanner, Industry camera, Medical equipment
| Name | USB Camera |
| Product No. | SX-6800H |
| Resolution | 4K (8.0Megapixels) |
| Image Sensor | 1/2.8" CMOS |
| Pixels | 3840*2160 |
| Pixel Size | 1.45μm*1.45μm |
| Compression Format | MJPG/YUY2 |
Resolution & Frame Rate
FOV | 1920*1080 25fps[MJPG] 4fps[YUY2] H: 110 degree, V:73 degree
3840*2160 25fps[MJPG] 1fps[YUY2] H: 110 degree, V:73 degree |
| SN | >=39dB |
| Dynamic Range | >=72dB |
| Illumination | >=0.1LUX at F1.2 |
| Interface | USB2.0 4-Pin 1.5mm |
| Power Consumption |
Max. 1.3 W |
| Power Supply | USB5V±5% |
| Lens | 2.1mm |
| Scan Method | Progressive scan |
| Interface Speed | USB2.0/480Mb/s |
| Dimension of PCB | 38*38mm / 90*16mm ±5% |
| Work Temperature | -30~75ºC |
| Storage Temperature&Humidity | -20~70ºC/20%~90%RH |
| Support System | WindowsXP/7/8/10//vista/Server/Linux(include UVC)/Android |
If there is any question, please don't hesitate to contact us. We will try our best to cooperate with you.
>>
