| US$3,000.00-50,000.00 | 1 Piece (MOQ) |

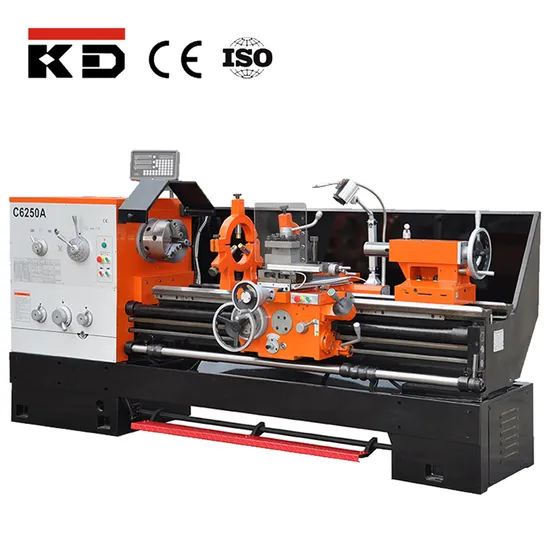

| MODELS | C6250A |
| CAPACITY | |
| Max.swing over bed | Ф500mm |
| Max.swing over carriage | Ф310mm |
| Max. swing over gap | Ф720mm |
| Distance between centers | 1000/1500/2000/3000mm |
| Max turning length | 850/1350/1850/2850mm |
| SPINDLE | |
| Spindle nose | D8 |
| Spindle bore | Ф80mm |
| Taper bore of spindle | M.T.NO.7 |
| Steps of spindle speed | 12 |
| Range of spindle speed | 36~1600rpm |
| FEED | |
| Range of longitudinal feeds | 0.063~2.52 (0.023″~0.937″)mm |
| Range of cross feeds | 0.027~1.07(0.010″~0.404″)mm |
| RAPID TRAVEL | |
| Longitudinal | 4500mm/min |
| Cross | 1900mm/min |
| THREAD RANGE/ NUMBER | |
| Metric pitch threads | 1~14mm/ 22 |
| Whit-worth threads | 28~2 T.P.I/ 26 |
| Module threads | 0.5~7M.P/ 18 |
| D.P.Threads | 56~4 D.P/24 |
| TAILSTOCK SLEEVE | |
| Taper bore | M.T.NO.5 |
| Max travel | 150mm |
| External diameter | Ф75mm |
| OTHERS | |
| Size of tool shank | 25×25mm |
| Max travel of cross slide | 340mm |
| Max travel of top slide | 145mm |
| Main motor power | 7.5kw (10HP) |
| Overall dimensions(L×W×H) | (2500/3000/3500/4500)×1100×1380mm |
| Net weight | 2900/3150/3400/3750kg |
