Welcome to visit

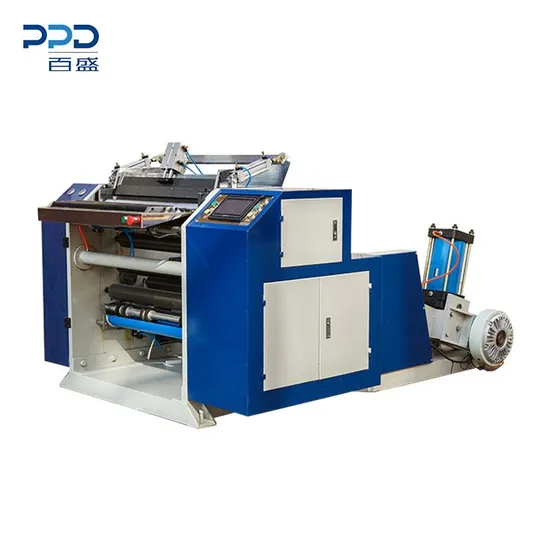

High Quality Thermal Roll Slitter Winder Machinery

US$1,500.00-35,000.00 1 Unit (MOQ)

Basic Info.

Model NO.
PPD-TRS500
Classification
Single-blade Cutter
Driven Type
Electric
Type
Living Paper Cutting Machine
Blade Material
Metal
Computerized
Computerized
Max Width
700mm
Max  Mother Reel Dia
1200mm
Slitting Width (Standard)
Adjustable Width Max 900mm
Max Rewind Diameter
180mm
Rewind Core Diameter
12.7,25-38mm - Option
Cutting Speed
150 M / Per Minute
Dimension
1600X1500X1600mm
Net Weight of Machinery
2m/Ton
Total Power
2.2kw (Kilowatt)
Voltage
220/380/415V 50&60Hz
Transport Package
Plywood Case
Specification
CE, SGS, ROHS
Trademark
PPD
Origin
China(Mainland)
HS Code
84110000
Production Capacity
10units/Month

Product Description

Safety abrrier system,auto stop cover of gear housing of unwind station.Our machine is improted technology from Japan,it is at 40mm thickness wall frame to stablize machine,all premium world top class of PLC,LCD,inveter etc.Auto control of magnetic powder break system,Auto tension controller It is compact,Steady for performing,Easy for operation,High production speed.
Brief Technical Data:
Max Width 700 mm
Max Mother Reel Dia 1200 mm
Slitting Width (Standard) Adjustable Width Max 900mm
Max Rewind Diameter 180mm dia.
Rewind Core Diameter 12.7,25-38mm - Option
Cutting Speed 150 m / per minute
Dimension 1600x1500x1600mm
Net Weight of Machinery 2 M/Ton
Total Power 2.2kw (kilowatt)
Voltage 220/380/415V 50&60hz
