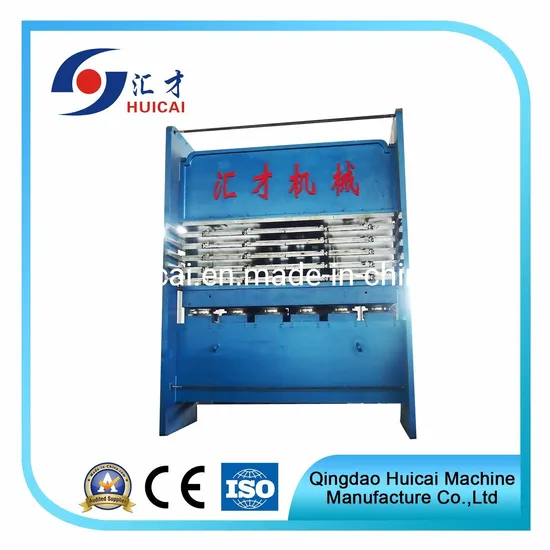

H Type Rubber Tread Vulcanizing Press Machine

Product Description

Why choose our company?
1. AAA grade credit enterprise.
2. With 14 years experience in manufacturing rubber machines has become one of the biggest company in China.
3. Exported to more than 20 contries with good quality. Example: The good year company in Chile...
Management Concept: Survive by Quality, Develop by Credit, Innovate by Technology, Improve by precision.
Times Concept: People Oriented, Scientific Development, Advance with Times, Innovative creation.
Work Concept: Hardworking Practical, Conscientious and Meticulous.
Why choose our this machine?
1. High speed open/close mold, high production efficiency, protect mold.
2. Adopt new sealing material, excellent seal and long life.
3. Matching avanced oil way, reduce energy consumption.
4. Its structure is simpleand application is wide. It is easy to be operated.
Detailed information:
1. Hydraulic cylinder:
Hydraulic cylinder material is cast iron
When the hydraulic cylinder is working, internal pressure can be reached 33 million Mpa.
Hydraulic cylinder with a flange, so that fixed on the beam, also be a hole for working fluid in and out of the hole, there is one groove, in order to install sealing ring.
There are two kinds of oil seal, one is top material, the other is Ordinary materials.
Our oil seal is top material
2. Flat:
The material is Cast or steel
The flat used to be put the mold.
Then flat transfer the pressure to mold, heat mold
Flat heat evenly is very important for vulcanizing machine, it can decide the quality of the finish products.
3. Plunger:
Plunger is a thick-walled casting cylinder and closed at one end.
It is in the inside of hydraulic cylinder, plunger work under the pressure of the liquid, when plunger rise, convey the force to heating plate.
The plunger should be able to work under the liquid pressure.
4. Detailed description(Electric pipe):
Material is stainless steel
No easy to rust
Conductive fast
Power saving
Fire prevention
Commissure is better than double head electric pipe
Replacement is easy
Useful life is about 5 years

Type	XLE-Q 400×200	XLE-Q 400×400	XLE-Q 400×600	XLE-Q 400×600	XLE-Q 800×1100	XLE-Q1600×1500
Nominal mounding power (MN)	0.20	0.40	0.60	1.2	1.8	4.8
Plate specification mm	400×200	400×400	400×600	400×1200	800×1100	1600×1500
Pressure of plate's unit area (Mpa)	2.5	2.5	2.5	2.5	2.0	2.0
Main motor's power (KW)	2.2	3	3	7.5	11	13
Inner Girth of vulcanization belt	960-3500	1680-3500	1680-3700	5000-17000	---	4700
Overall Size	3200*1050*1730	3200*1050*1730	3200*1050*1730	3200*1050*1730	2400*1100*2330	4000*1500*3060
Product Weight	4000	4500	5000	8000	14000	20000

---
