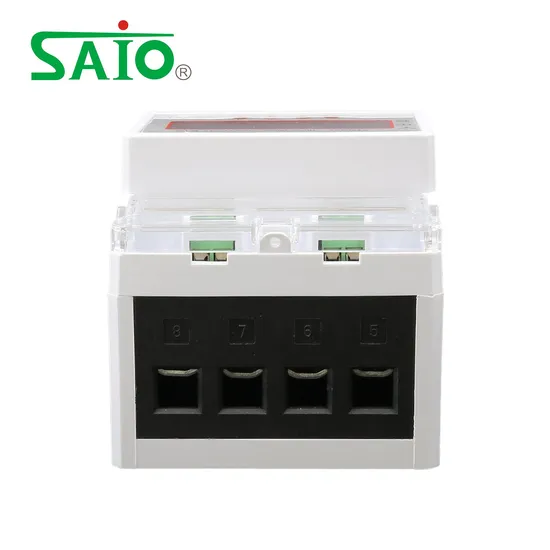

The DTSD156 type electronic three-phase watt-hour meter adopts thelatest microelectronic technology to measure active three phase AC electric energy.with rated frequency 50/60Hz,measuring power of in both forward and reversedirections. This series of digit meter has two modes of cut-over: cut-over directlyand cut-over by mutual inductance electronics. The performance is in conformity withthe technical requirements for three-phase Electronic Watt-hour Meter stipulatedin lEC62053-21-2003 Elctricity metering equipment (ac) static meter for activeenery(class 1 and 2) and lEC62052-11-2003 Electricity metering equipment (AC)Generalrequirements,tests and test conditions part 11.
Accuracy
|
1
|
Voltage
|
3×220V/380V, 3×57.7V/110V
|
Current
|
1.5(6)A,5(20)A,5(40)A,5(100)A,10(30)A,15(90)A,20(100)A,
|
Frequency
|
50/60Hz
|
Starting Current
|
0.4%Ib 0.5%Ib
|
Power consumption
|
≤5VA
|
Working temperature
|
-25°C - +55°C
|
Insulation Property
|
2KV alternating voltage for 1 min, impact voltage up to 6KV
|
Standard
|
IEC62053-21, IEC62052-11, DIN EN5002, DIN43880, DIN43864
|
Auxiliary Functions
|
4 Tariff, 8 period, Calendar Setting
|
Battery inside, data will be stored more than 10 years when power failure.
|
Automatically error test
|
Communication
|
RS485 with programmable Modbus-RTU or DL/T645 |
