Factory Pulling Drum Scraper Electric Wire Rope Lift Hydraulic Dispatching Lifting Winch

Product Description

Product Description
Introduction of Coal Mining Explosion Proof Electric Small Lifting Hoist Dispatch Winder Heavy Duty Winch Underground Mining Tunnel Lift Hydraulic Dispatching Winches Coal Mining Explosion Proof Electric Lifting Hoist Underground Dispatching Winch is widely used to pull the tramcar underground.The explosion-proof electric device can be applicable for the colliery and other mine with gas danger.zmwm02
JD Dispatching Winch are all explosion-proof for mine or surface mine car loading operation grouping and hauling carts in the middle of roadways and other supporting transport purpose.
JD Dispatching Winch are used plantary gear drive, have following features:compact structure, good rigidity, high efficiency, conveniency for installing and moving, flexible operation, smooth braking, low noise.
Product Parameters
Main Parameter of Coal Mining Explosion Proof Electric Small Lifting Hoist Dispatch Winder Heavy Duty Winch Underground Mining Tunnel Lift Hydraulic Dispatching Winches

Model	JD-0.5	JD-0.75	JD-1	JD-1.6	JD-4
Traction Force KN	7.5	7.5	10	17.6	30
Average Speed m/s	0.71	0.71	0.78	1.4	1.44
Dia of Wire Rope mm	9.3	9.3	12.5	15	20
Drum Size mm	200×300	200×300	224×304	310×400	620×580
Rope Capacity m	250	250	400	440	480
Total Reduction Ratio	34.81	34.81	41	32.5	31.8
Motor Type	YB132S-4-B5	YBJ-11.4	YBJ45-4	YBJ40-4	YB2-132S-4
Motor Power KW	5.5	11.4	25	40	5.5
Motor Rev Rev/min	1440	1460	1470	1470	1440
Motor Voltage V	380/660	380/660V	380/660V	380/660V	380/660V
Di mention mm L×W×H	1085×730 ×697	1085×730 ×697	1073×766 ×727	1448×1255 ×1260	1900×2350 ×1370
Weight KG	400	400	578	1370	2800

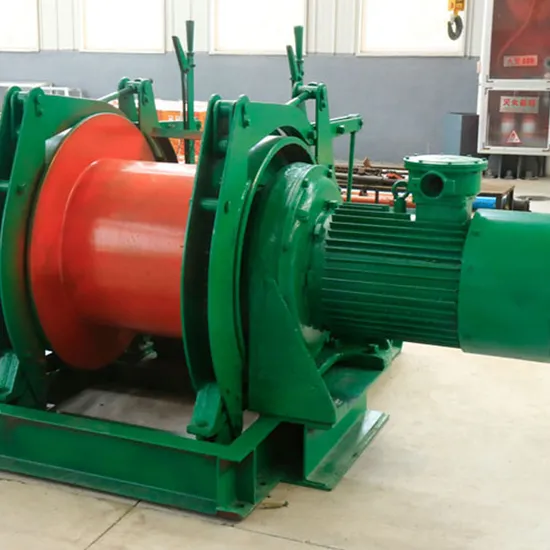

Detailed Photos
Pictures of Coal Mining Explosion Proof Electric Small Lifting Hoist Dispatch Winder Heavy Duty Winch Underground Mining Tunnel Lift Hydraulic Dispatching Winches
Certifications
Customer Visits
Exhibition
Company Profile

---
