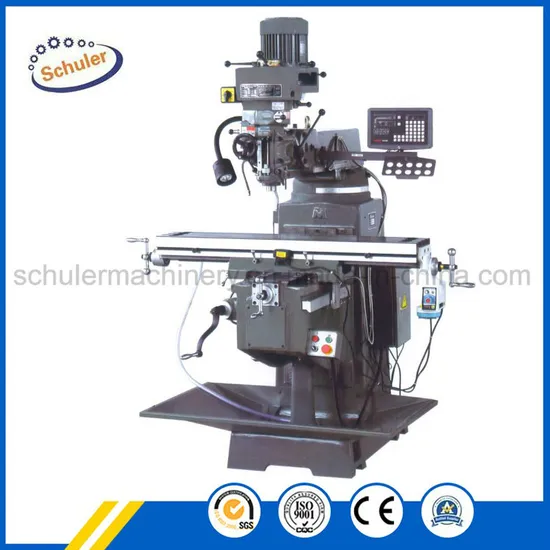

220V/360V 4h Knee Type Milling Machine Universal Turret Milling Machine

Product Description

220V/360V 4H Knee Type Milling Machine Universal Turret Milling Machine
Universal Turret Milling Machine Performance:
1.Work Table Surface and Guide ways Hardened by Supersonic Frequency Quenching (depth 2-4MM)
2.Work Table Made by HT200-250 High Strength Cast Iron
3. With the horizontal milling function
4.Plastic Guide Way Increase The Precision And Service Life
5.Three Axis can Fix (X/Y/Z) Automatically Feed .
Universal Turret Milling Machine Standard Accessories:
1.Milling chuck sets
2.Reducing sleeve 7:24ISO50/MS4 and 40/MS4 3.Hexagonal Spaner 5 and 10
4.Stay wrench S21-24 and S27-30
5.Horizontal milling cutter arbor 7:24 ISO50 27 6.Horizontal milling cutter arbor 40
7.Draw bar M24 (on the machine)and M16
8.Work lamp
9. Cooling systerm 10.universal milling head XC63T4A
Optional Accessories:
1.X/Y power feed
2.Z axis lifting motor
3.three axis sino dro
4.QH200 flat vice
Universal Turret Milling Machine Technical Parameters:

Specifications		Units	4H
Table size		mm	1270x254(10"x50")
T- slot number and size		mm	3/16/65
Max.table load		Kg	350
Working table stroke	X	mm	850
	Y		400
	Z		400
Ram stroke		mm	470
Spindle nose to table top		mm	0-460
Spindle center to body distance		mm	155-635
Taper of spindle hole			R8
Spindle speed(50HZ)		r/min	16(shift grade)66-4540
Spindle travel		mm	127
Spindle sleeve diameter		mm	87.52
Spindle feed rate		mm/r	0.04(0.0015")/0.08(0.003")/0.15(0.006")
Spindle motor power		HP	3
Rotary arm		°	360°
Head rotation (left - right )		°	90°
Head rotation (front - rear)		°	45°
Overall size(LxWxH)		mm	1600x1700x2250
Gross Weight		Kg	1200

Brand Image:
As a professional manufacturer of milling machines, we want our customers to know of our commitment to providing the latest products to all customers.
Universal Turret Milling Machine Workshop Spot:
Universal Turret Milling Machine Package Delivery:
FAQ
1. What level of service do you provide ?
--->Your inquiry will be replied within 24 hours.
2. Technology support by providing operation?training videos?
---->Professional after-sales service team.
Give reasonable offers with the best quality.
3. What is our advantages?
----> Competitive price: We can meet your budget and best-selling business very well.
OEM Accepted: We can produce customized design.
Good Service: We treat clients as friends and provide problem solving anytime you need.
Good Quality: We have strict quality control system. Good reputation in the market.
Fast & Delivery: We have big discount from forwarder (Long-term Contract).
4. Can you customize the machine for the customer?
---->Yes. We can, if you need customized services, please contact us
5. What is the MOQ?
---->We usually provide 1 set for customers to test.
6.What is your delivery time?
---->The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
7.What is your payment method?
---->We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)
8.Agents Wanted:
---->We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop SCHULER to a global brand. Wherever you are from, we are looking forward to explore new market with you.
