New Type High Capacity Gypsum Powder Grinding Machine with Ce/ISO

Product Description

Gypsum powder grinding machine Application:
Feed Size: 10-20mm
Finished Size:150-3000mesh
Capacity: 0.4-30T/h
Materials: Gypsum powder grinding machine is mainly applied to the processing of Mohs hardness of < 9 nonflammable and explosive of brittle materials, such as: Coal, mica, talc, graphite, quartz, fluorite, calcite, dolomite, limestone, kaolin, bentonite, barite, potassium feldspar, bauxite, coal gangue.
HGM series of ultra-fine grinding mill is widely used in paint, paper, paint, rubber, plastic, packing, cosmetics, chemical products and other industries.

Gypsum powder grinding machine introduction:
Gypsum powder grinding machine is based on years' experience of accumulated mill production, absorbing the Swedish advanced mechanical manufacturing technology is a new superfine powder and through the test and improvement for many years and development (325-2500) processing equipment. It is the crystallization of advanced technology, which is leading the world trend of the latest milling machine
Gypsum powder grinding machine Features:
1. High Efficiency
Under the same finished final size and the same motor power, the capacity of Iron Oxide Grinding Machine is twice as much as jet mill, mixing grinder and ball mill, and energy consumption decreased 30%.
2. Long lifecycle of spare parts
The ring and roller are forged by special material with high utilization, the lifetime can reach 2-5 years for grinding calcite carbonate.
3. High safety and reliability
As no rolling bearings or screws in grinding cavity, there are no problems caused by bolts shedding or rapid wear of bearings and seal components.
High fineness, flexible adjustment
4. The final fineness of the grinding materials can be adjusted between 325 meshes and 2500 mesh (47-5 micron), and the product fineness can reach D97≤ 5μ M.
5. Environment-friendly
The application of pulse bag filter and muffler greatly alleviates dust pollution and noise.
Advanced intelligent speed control device
Convenient adjusting, more uniform particle size
Gypsum powder grinding machine Working Principle:
The main motor drives main axle and every layer rotating by the power of reducer. Dial drives numbers of rollers rolling and rotating in the ring by pintles. Big materials are crushed into small particles by hammer crusher. Then they are sent to store house by elevator.

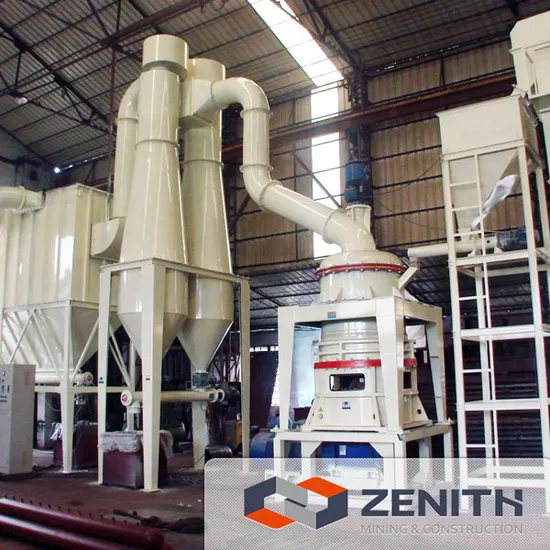

The complete set of Gypsum powder grinding machine:
The whole set of Gypsum powder grinding machine onsists of main mill, powder classifier, speed reducer, blower, jaw crusher, bucket elevator, vibrating feeder, storage bin, bag filter, pipe and fitting, cyclone powder collector, electric control cabinet, electric motor, etc.
Gypsum powder grinding machine parameters:

Model	XZM221	XZM224	XZM236	XZM244	XZM268
Working diameter (mm)	Φ800	Φ900	Φ1000	Φ1250	Φ1680
Max feed size (mm)	≤20	≤20	≤20	≤20	≤20
Final size (mesh)	325-2500	325-2500	325-2500	325-2500	325-2500
Output (kgh)	500-4500	800-6500	1000-8500	2500-14000	5000-25000

Model		XZM221	XZM224	XZM236	XZM244	XZM268
Main motor	Power	55/75	45×2	132	185	315
Analytical engine (FM motor)	Power	18.5	18.5	30	37	18.5×5
Blower motor	Power	45	55	75	55×2	90×2
Crusher	Model	PC400×600	PC400×600	PC400×600	PC600×800	PC600×800
	Power	18.5	18.5	18.5	45	45
Elevator	Model	TH-200	TH-200	TH-300	TH-300	TH-300
	Power	3	3	4	5.5	7.5
Vibrating feeder	Model	300×60 Apon belt conveyor	300×60 Apon belt conveyor	300×60 Apon belt conveyor	400×80 Apon belt conveyor	400×80 Apon belt conveyor
	Power	2.2	2.2	2.2	3	3
Discharge screw conveyor	Model	LS219×4.5	LS219×5.8	LS219×6.9	LS219×5	LS273×8.6
	Power	3	3	4	3×2	5.5×2
Discharge valve	Model	ZJD-200	ZJD-200 ZJD-250	ZJD-200 ZJD-250	ZJD-250	ZJD-300 ZJD-200
	Power	0.75×2	0.75×1 + 1.1×1	0.75×1 + 1.1×2	1.1×3	1.5×2+0.75×2
Pulse dust collectors	Model	DMC120	DMC160	LDMC250	LDMC250×2	LDMC400×2
Air compressor	Model	KSH150D	KSH240D	KSH300D	KSH300D×2	LG10/8
	Power	11	15	22	22×2	55

Q1: Are you factory or trade company?
A1: We are factory with CE&ISO.
Q2: Where your products have been exported before?A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.
Q3: How will you help the customer to install the equipment? Our senior engineer will supply installation and training service on-line or on-site .
Q4: How about the wear parts supply?A4: We will supply the wear parts with factory price .
Q5: What about after-sale service?A5:12 months warranty for all kinds of products.
Q6: How to get the free solution and quotation ?A6: Please send inquiry to us ,leave your whatsapp and email, our sales manager will contact you within 1 hours .

---
