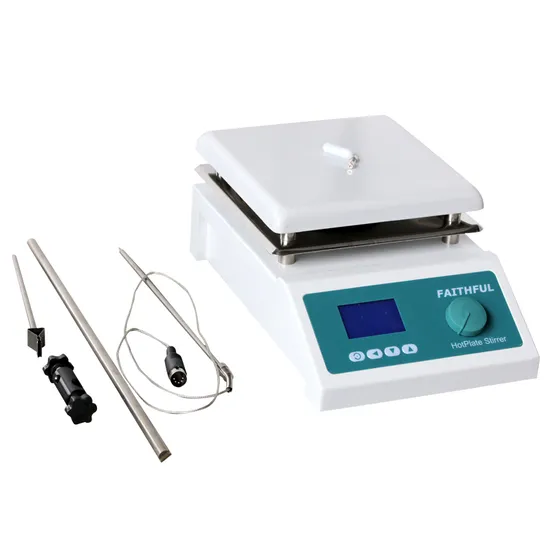

Sh-4c Ceramic Magnetic Stirrer, Hotplate Stirrer CE Certificate

Product Description

Uses:
The Ceramic Magnetic Stirrer main used for liquid heating and stirring in industry, agriculture, health and medicine, scientific research and college laboratory etc.
Characteristics: 1.Stretched shell and cover prevent leaking.
2. Heating and stirring can proceed simultaneously.
New digital model SH-II-4C, Ceramic Magnetic Stirrer with the following function:
SH-4C
1. Setting temperature precisely.And stirring speed stepless adjustable.
2. Large LCD display,temperature and rotate speed can be displayed simultaneously.
3. Double sensors:outer PT100 temperature sensor to control liquid temperature precisely ,inner K model sensor to control hot plate temperature.
4.K mode sensor to control hot plate temperature.
SH-II-4C
1.Setting temperature and stirrer speed precisely,and stirring speed stepless adjustable.
2.With speed switch to start or stop stirring at any time.
3.Timing function (0-9999min), time adjustable under artficial requirement. Audible and visual alam equipped.
4.Double sensors:outer PT100 temperature sensor to control liquid temperature precisely ,inner K model sensor to control hot plate temperature.
5.One key to shift inside and outside sensor easily and precisely.
6.Large screen LCD display can indicate temperature, rotational speed and timing at the same time.
Mould Cultivation Cabinet:

Model		SH-4A	SH-4B	SH-4	SH-4C	SH-II-4C
Mode		Heating	Stirring	Heating + Stirring	Digital+ Heating + Stirring
Function	Max. Volume (ML)	5000	5000	5000	5000	5000
	Speed (r.p.m)	-	200~2000
	Working time	Continuous
	Minimum revolution ( R.P.M.)	-	200	200	200	200
	Max. temp (ºC)	380	-	380	350	350
Structure	Exterior	Iron plate welding, surface spraying
	Heating plate	Ceramic Coated
	Driving mode	-	Motor
	Motor power (W)	-	20	20	20	20
	Heating power (kW)	0.6	-	0.6	0.6	0.6
	Stir bar	no	PTFE
Controller	Continuous operation	yes
	Setting mode	Scale			Digital
	Speed display mode	Scale			Digital	Digital
	Timer	no				yes
	Operation function	no				yes
	Sensor	no			PT100	PT100
Specification	Exterior size (W*L*H) (mm)	320×190×125
	Packing size (W*L*H) (mm)	390×240×230
	Plate size (mm)	190×190
	Plate load	10KG
	Power supply (50/60Hz) Current rating	110V or 220V
	NW/GW (kg)	5/6	5/6	5/6	5/6	5/6

---
