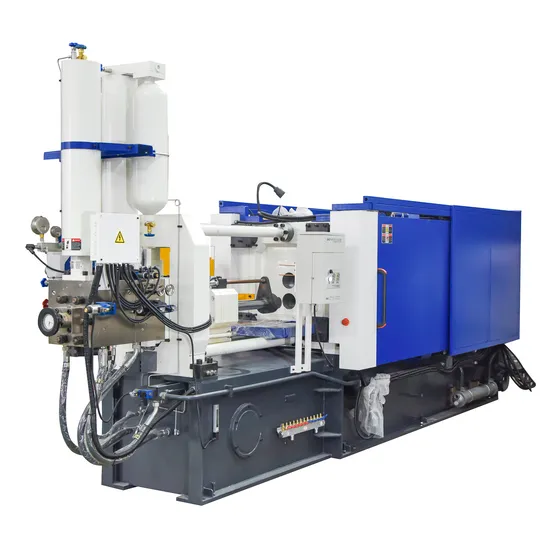

Cold Chamber Die Casting Machine for Metal Castings Manufacturing C/200d

Product Description

Specifications
1.cold chamber die casting machine.
2.IS09001:2000 Certification and CE Safety Certification
Strategy

The goal of manufacturing famous products and developing the company for centuries has been passed on from generation to generation. In past 20 years, we always provide perfect cold/ hot chamber die casting machine and sincere service.

* With a history of over 20 years * Factory Area : 20,000 square meters
*Employees : More than 200 *Production Capacity : 1,000-sets yearly capacity
*Company owed Tech & Research center * Main Machines: 50sets

SCAN:

200T Cold die Casting Machine

2.Suitable for aluminum,zinc and copper alloy

3.PLC and person-machine

4.4-rod pilot elastic framework for excellent rigidity

5.Proportional relief and flow control valves

6.PLC and person-machine interface

What product this machine can make? ----- The cold chamber die casting machine is suitable for die casting of non-ferrous metal with low melting point, such as aluminum, zinc and copper. It is widely applied for die casting of fittings of automobile and motorcycle, and parts for instrument and meter, and household appliance hardware of daily necessities.Deals with the research and manufacturing of high precision die casting machines for many years(start from 1995). With "WELLISH"brand cold chamber series(140-2080Tons), hot chamber series(30-200Tons), MG ALLOY series(140-1380Tons). Frequency translation&servo drive saving-energy system techology, with high quanlity moulds and furnace and auxiliary machines provide AL/MG/Copper/Zinc Alloy prodct solutions for you.

Specification		C/200D
Clamping Force	KN	2000
Clamping Stroke	mm	385
Die-Thickness (Min-Max)	mm	200-580
Platen Size(H*V)	mm	720x720
Space between Tie-Bars	mm	480x480
Diameter of Bars	mm	85
Casting Force	KN	99-250
Casing Stroke	mm	370
Injection Plunger diameter	mm	50 60
Max. Casting Volume (AL)	kg	1.3 1.9
Max.Casting Volume(MG)	kg	0.8 1.1
Casting Pressure (Min-Max)	Mpa	50.4-127.3 35-88.4
Cast Projection Area	Cm2	141-700
Injection Position	mm	0, -140
Ejector Space	mm	150
Extruding Flange Diameter	mm	110
Height of Extruding Flange Pattern	mm	10
Ejecting Force	KN	109
Ejecting Stroke	mm	85
Dry Cycle Time	s	6
System Working Pressure	Mpa	16
Motor Power	KW	15
Tank Capacity	L	595
Machine Weight	kg	7800
Overall Dimensions of Machine (L*W*H)	mm	5510*1360*2530

WELLISH precision die casting machine are widely used for lead , zinc,copper , aluminum , magnesium etc non-ferrous die casting in the industries of aviation & aerospace , ship & vehicles , electric and electronic appliances , instruments and meters , medical facilities , hardware's etc.
Factory Panorama
Exhibition Show
Packaging & Shipping
