Swiss Type High Precision CNC Lathe Machine for Metal Cutting Made in China Sx325

Product Description

Product Description
Discover the unparalleled capabilities of the Swiss-style lathe, a pinnacle of modern CNC automatic lathe technology. This marvel of precision processing machinery is engineered to perfection, offering a broad spectrum of sophisticated functionalities including tapping, milling, drilling, and turning operations. With its groundbreaking dual spindles and innovative double Y-axis, this machine sets a new standard in simultaneous processing, dramatically minimizing processing time while maximizing efficiency. Its core strength is manifest in the high-volume production of complex, non-standard components, especially precision hardware and shafts that demand exquisite and unique shaping solutions.
Product Parameters

Items		SX325
Mechanic	System	FANUC 0i TF-PLUS	SYNTEC 220TB
	Max.RPM	Main8,000min-1/Sub8,000min-1	Main6,000min-1/Sub8,000min-1
	Max.Turning Diameter	φ32mm
	Main Spindle Stroke	280mm
	Rapid traverse speed	32m/min(X1:24m/min)	24m/min
Tools	O.D Tools	6X [16×16]
	I.N Tools	5X [φ20-ER16]
	Cross Driven Tools(integration)	4X [ER16]
	Back end tools(fixed)	4X [ER16]
Motors	Main	5.5/7.5KW	5.9KW
	Sub	1.5/2.2KW	3.9KW
	Cross	0.55/1.1KW	1KW
	Drive	0.75KW	1KW
	Coolant	0.9KW
Others	Coolant tank capacity	200L
	Lubrication tank capacity	1.8L
	Central Height	1,000mm
	Weight	3,800Kg
	The size (L×W×H)	2581×1563×1791mm
NC NC Control	/Controllable Axes	7axis/4axis
	LCD	LCD 10.4"
	System standard parameters	Standard
	Rigid tapping	Standard
	Hand wheel	Standard
	/ Synchronous/hybrid control	Standard
	Helical interpolation	Standard

Items
Standard units	Hand wheel	/C+ Main/Sub axis C + brake
	Floodlight	The product output device
	Transformer	Centralized lubrication system
	Three color light	Synchronus rotary guide bush holder unit
	C:0.001° C axis resolution: 0.001 °	Auxiliary shaft workpiece ejection device
	M Air blow on Sub spindle	Cooling box
0ptionanl units	Bar feeder	Long after loading device
	Chip conveyor	Rectangular power seat
	Oil cooler	Dynamic seat adjustable Angle
	Gun drill	After the end of the quick change perspective
	Oil mist collector	2[ER16]+1 [ER16] 2axis eccentricity tools (rotating)+1axis (fixed)
	High pressure pump	3[ER16] 3axis eccentricity tools (rotating)
	Thread whirling rings	3+[ER16] Back end tools 3axis (rotating)+ 1 axis (fixed)

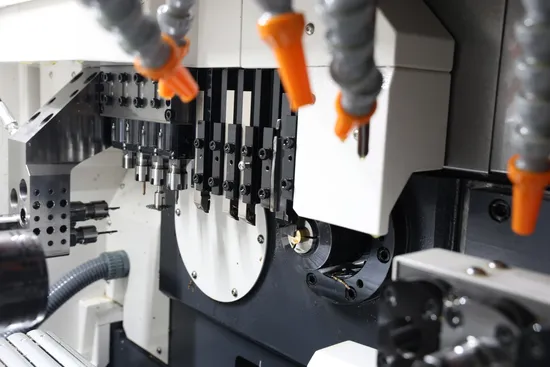

Detailed Photos
Application
Applications of Swiss Machining
While the Swiss watchmaking industry may have been the genesis of Swiss machining, today it finds diverse applications across various industries. The versatility and precision of this technology have made it indispensable in fields such as:
1) Aerospace
The aerospace industry stands to gain immensely from the intricate parts produced by this form of machining. Aerospace components, notable for their complexity and precision, are widely manufactured using Swiss machines. Key metals include aluminum alloys and steel, with components such as fans and fasteners benefiting from this advanced process.
2) Medical devices
In the medical field, where precision is paramount, the Swiss type lathe products play a crucial role. The technology is extensively used to create delicate components for medical devices, achieving the high precision necessary for surgical instruments and implants, thus revolutionizing the medical landscape.
3) Electronics
Modern electronics are evolving to be smaller and more complex, posing challenges for conventional lathes. Enter CNC Swiss machining, an advanced solution that excels in producing sophisticated components such as connectors, pins, and a multitude of electronic parts, efficiently meeting the demands of cutting-edge electronics manufacturing.
4) Automotive
Swiss machining solutions also have a significant impact on the expansive automotive industry. This cutting-edge technology underpins some of the latest mechanical advancements, aiding in the creation of smaller, intricate components essential for contemporary automotive engineering.
Automotive manufacturers leverage this technology to produce suspension components, carburetor covers, and engine parts. Benefits include substantial cost reductions, streamlined manufacturing processes, and enhanced production speeds, driving the industry forward with unparalleled efficiency.
Our Advantages
1. Professional Supplier: Rely on our seasoned team, dedicated to delivering top-notch precision machinery solutions, expertly tailored to fulfill your specific requirements.
2. Best Quality: Immerse yourself in unparalleled quality standards that guarantee unwavering reliability and peak performance, echoing our unwavering commitment to excellence.
3. Best Service: Indulge in stellar customer service where your satisfaction reigns supreme, ensuring a seamless experience from your initial inquiry to the final delivery.
4. Best Price: Enjoy competitively priced offerings that deliver exceptional value while upholding our rigorous quality and service standards.
Packaging & Shipping
FAQ
1.What products do we have ?
Machine :laser engraving machine ,laser cutting machine ,laser welding machine ,laser marking machine /cnc lathe machine ,swiss type cnc lathe machine ,cnc machine center
2.Why Choose us ?
1)Faster delievery time
2)Full set of production equipment
3)Any third party test can be accepted
4)Payment terms are more flexible ,both TT and LC can be accepted
5)Perfect Pre-sale and After-sale services can be provided within 24 hours online
3.What is the best advantage do we have ?
Best Quality ,Best service ,Best price

---
