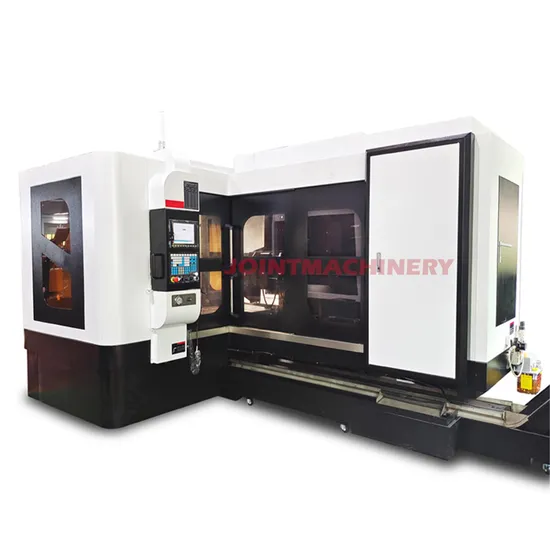

Dh-1600 Horizontal CNC Deep Hole Drilling Machine for Precision Metal Hole Making

Product Description

Drilling stands as the cornerstone of machining operations, representing a process with vast applicability across numerous fields. Traditional drilling equipment like bench drills, milling machines, and radial drills traditionally constrained operators, compelling them to manually repeat tasks, often compromising on quality and efficiency. These conventional methods were also fraught with safety hazards and limitations. However, the advent of the CNC era heralded a transformative shift. Our Horizontal CNC Drilling Machine for Precision Metal Hole Making revolutionizes operations by liberating operators from repetitive tasks, solving the depth drilling conundrum, and allowing single-pass drilling to match the quality of traditional methods. Additionally, this advancement facilitates automated chip removal, precise CNC positioning, and seamless automatic processing.

3 Axis CNC Deep Hole Drilling Machine	4 Axis Vertical CNC Deep Hole Drilling Machine	Multi-Spindle CNC Deep Hole Drilling Machine	6 Axis CNC Deep Hole Drilling Machine

The precision CNC deep hole drilling machine, crafted with meticulous care by Shenzhen Joint Machinery Co., Ltd., is adept at managing deep hole processing across a myriad of workpieces:
√ Die & Mould Industry: Perfect for water transport holes, center holes, hot runners, guide roller holes, and more, ensuring precision and accuracy.
√ Auto Industry: Expertly handles deep hole processing in cylinder heads, crankshafts, hydraulic tubing, plunger bushings, delivering exceptional performance.
√ Oil Pump & Lubricating Nipple Industry: Excellence in deep hole processing for oil-injection gas, nozzle valves, plunger bushings, and assorted spare parts.
√ Textile Machinery Industry: Specialized in mesopore processing for various spindles, enhancing industrial functionality.
√ Medical Equipment Industry: Proficient in axial processing of titanium alloy and stainless steel, tailored for high-precision medical applications.
√ Mine & Oil Machinery: Mastery in deep hole processing of piston rods and cylinder walls, ensuring robust and reliable machinery operation.
√ Electrical Power and Steam Turbine Industries: Excels in deep hole processing of rotors, central spindles, valve spindles, unit outer cylinders, and condenser tube plates.
DH-1600 Horizontal CNC Deep Hole Drilling Machine for Precision Metal Hole Making

Model	Unit	DH-1600
Inner diameter of drilling	mm	2.5-35
Max depth of drilling	mm	1600
Table size	mm	1800*1150
X axis travel	mm	1600
Y axis travel	mm	1100
Z axis travel	mm	1600
Cutting feeding	mm/min	1-300
Max rotary speed of spindle	rpm	7000
Spindle motor	kw	7.5/11
Three axis motor	kw	4.4/4.4/2.3
Pressure of oil pump	kg/cm	0-150
Capacity of cutting tank	L	800
Max load weight of table	kg	13000
Weight	kg	14000
Dimension	mm	5500*4300*2800

Shenzhen Joint Machinery Co., Ltd. stands as a beacon of innovation, offering an extensive array of CNC machinery including CNC lathe machines, deep hole drilling machines, Swiss-type automatic lathes, milling machines, and grinding machines. Driven by a commitment to excellence, we deliver machines of unmatched quality and service to a global clientele. Our focus on precision and quality control ensures that our products exceed industry standards, backed by cutting-edge technologies from Taiwan and Germany. Equipped with state-of-the-art facilities, our machines promise precision, stability, and dependability, catering to complex and high-stakes machining tasks. Our dedication to quality has earned us a sterling reputation across Asia, Europe, the Americas, and beyond. We cherish our enduring partnerships with international clients, fostering mutual growth and success.
