High Speed Bluetooth 80mm Thermal Receipt Printer with Autocutter

Product Description

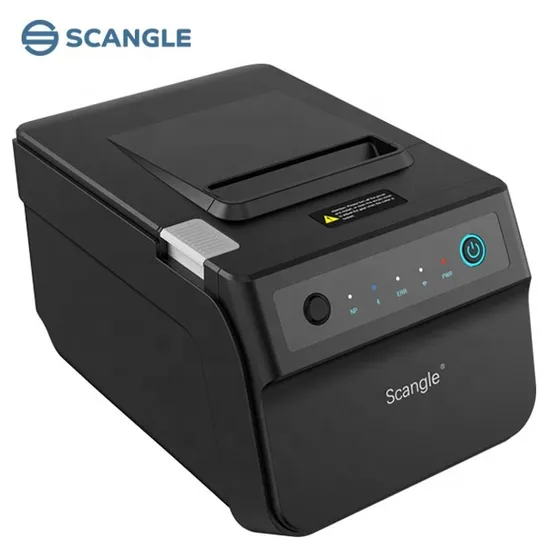

High Speed POS Thermal Receipt Printer with Autocutter Model : SGT-88IV
Main Descriptions :
• Direct thermal printing,no ribbon required
• Printing speed at 300mm/s, with unique design,use friendly.
• Max paper width : 80mm/3inch ,58mm/2inch
• Support printing graphics and barcode
• Support QR code , Barcode, Logo, Image/graphic
• Printer status monitoring, Alarm for new printing and paper untaken
• Compatible with , ESC/POS command completely .
• Easy paper loading for paper replacement
• With auto cutter, full or partial cutting at optional
• Versatile and adaptable, can be used as desktop or wall- mounting mode
• Waterproof, dustproof, oily fume-proof design
• All in one interface: USB+RS232+Ethernet (RJ45 ) / WiFi / Bluetooth
• Color available : white, black , silver ,gold ,green , blue
• USB port connection to support i phone , ipad ,ios

Detail Specifications :

Print	Printing Method	Direct Thermal Line printing
	Printing Speed	300mm/s
	Resolution	8 dots/mm, 576 dots/line
	Effective Printing Width	72mm
Character	Character Set	ANK,GB18030(Chinese)
	Print Font	ANK: 12 x24 Chinese: 24 x 24
	Character per Line	42
Paper Spec	Paper Type	Thermal paper
	Paper Width	79.5± 0.5mm
	Paper Roll Diameter	Max: 80.0mm
	Roll Core Inner Diameter	13mm(min.)
	Paper Thickness	0.06 to 0.07mm
Paper Supply Method	Drop-in paper load
Reliability	MCBF	60 million lines
	Auto Cutter	5,000,000 cuts
	TPH	100km
Barcodes	UPC-A,UPC-C,EAN-13,EAN-8,CODE39,ITF,CODEBAR,CODE93,CODE128
Emulation	ESC/OPOS
Print command	Compatible with ESC/OPOS order
Driver	Windows2000/XP/7/VISTA,Compatible:
Sensor	Paper Near End Sensor, Paper End Sensor
Drawer Port	1 Port
Interface	RS-232+USB+Ethernet ( RJ45) / WIFI / Bluetooth
Power Supply (Adapter)	AC100 ~240V(± 10%) DC 24V, 2A
Auto cutter	Type	Guillotine ( full autocutter )
	Life	5,000,000 cuts
Automatic cutter	All cuts or partly cuts (may elect)
Character size	576spot/lines 512spot/lines ANK character, Font A:12*24dot ,1.5(w)*3.0(h)mm Font B:9*17dot,1.1(w)*2.1(h)mm Jan/traditional form:24*24dot,3.0(w)*3.0(h)mm
Power	DC 24V/2.5A
Cash box control	DC 12-24V/1A
Physical	Net / Gross Weight	1.6kg / 2.5kg
	Printer Dimension	210*145*135mm (LxWxH)
	Gross weight for shipment (8pcs / carton )	20KG
	Shipment Carton size /8pcs	48*47*40CM (LxWxH)
Environment	Operating Temperature	0~ 50 ºC
	Storage Temperature	-20~60 ºC
	Operating Humidity	10 ~80%
	Storage Humidity	10~90%

Packaging including :
FAQ Q: What is the expected lifespan or durability of the product? A: Our product has an expected lifespan of 1 years and is designed to withstand heavy use in industrial environments.

2. Q: What is your company's experience and reputation in the industry?
A: Scangle company has been in business for 15 years and has a good reputation for delivering high-quality pos system hardware product
and excellent customer service . We have worked with numerous clients in POS system industries from all over the world .
We have show of Euroshop in Germany in April every year , and to discuss cooperation business with clients from Europe .

3. Q: What is your company's policy on returns and refunds?
A: We have a flexible returns and refunds policy that allows customers to return products within 1 month of purchase for a partial refund
or exchange. We also offer warranties on our products to ensure customer satisfaction.

4. Q: Are there any certifications or standards that the product meets?
A: Yes, our product meets several industry certifications and standards, including CE, BIS.
Company Profile

Who we are?
Since 2006,Scangle POS has become one of the leading and Reliable Supplier of POS system hardware solutions for more than 1000 importers and distributors from all over the world, We supply them most innovative and high quality POS system hardware to help them fulfills their consumer visual and functional demands.

What are our products?
We mainly specialized in development & manufacturer of POS input & output system hardware products including:15" touch screen all in one POS terminal, touch screen monitor, cash drawer, POS thermal receipt bill printer, portable mobile bluetooth printer, DOT matrix printer, kitchen receipt printer, , barcode reader, VFD customer display, magnetic card reader, etc.
All of these product widely work in any type of operation like restaurant, hospitality, hotel, Fine Dining, , Nightclub, bar, retail shops, supermarket, bank, government, lottery. Over the years our products have stood the test of time and are proven to be the highest quality and most affordable in the industry. With over hundreds of thousands pieces of POS system hardware used worldwide, Scangle POS now enjoy an excellent reputation from all over the world , and we will still continue to improve every aspect of quality, security and reliability for our communities.

Why chose us?
Our mission:
We pursue the principle of "good faith first, and customer supreme" in our business all the time. Our mission is to be an optimal choice of our esteemed clients, with holding on our beliefs "innovation makes moving ,Quality wins market, and considerate service gain trust, that long time stable and reliable intimate business partnership established between us and our lovely clients. We always continuously make great efforts to be your ideal "supplier "in your heart.

Our Team:
Scangle POS have team of intelligent, creative and hard working individuals, each of which play a vital role in our company of our clients and our partner success.
Our R & D group is staffed by highly trained and certified engineer and technician, which all are equipped with latest education and professional territory experience. Our sales group is composed of patient and knowledgeable individuals who are always willing to help and good communication.

Our factory:
We have our own factory for touch screen POS terminal and thermal printer, with modern 5 production lines, 2QC group, 2 storage warehouse, built in the 800 square meters area in Shenzhen, China . 1000PCS and 2000PCS of thermal printer per week can be finished with no delay, High-efficiency capacity makes our delivery always prompt and on time. We would rather to work with our clients for OEM/ODM order to be their background strong manufacturer supporter for easily popularizing their own brand.

Our market:
Scangle product mainly covers West Europe, South-America, Africa, Southeast Asia. We are constantly striving to develop and produce POS-equipment of the highest quality, resulting in the most advanced technology to monitor the needs of a constantly changing global market.
The New Product hot selling.
Since 2017, Scangle have invested large amount to develop own unique model of POS system product, like SGT-88IV, SGT-B58V, SGT-101, SGT-116. All these is most popular style designed with high quality performance, and can be made customized order to fit clients with different requirements.

Together we can do better, welcome to join us.
Exbition
Scangle POS take part in Europ Shop since 2020 , and have booth in Dusseldorf , Germany every year .

---
