Pocket Full-Automatic Digital Multimeter Does Not Need to Shift Gears

Product Description

MY8231S MINI Multimeter
product feature
-resistance measure up to 20mΩ with continuity detection
-voltege measurement
-manual power off
-low battery indication
-backlight

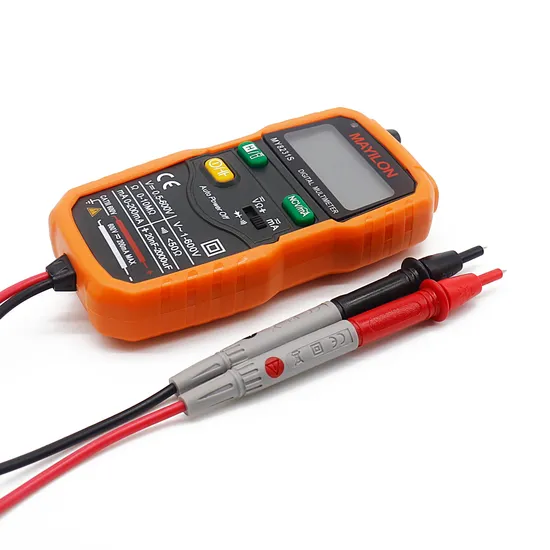

product image


Specifications

Model	MY8231S
	Range	Resolution	Accuracy
DC voltage	2V/20V/200V	0.001V/0.01V/0.1V	±(0.5%+3)
	600V	1V	±(0.8%+5)
AC voltage	2V/20V/200V	0.001V/0.01V/0.1V	±(0.8%+3)
	600V	1V	±(1.0%+5)
DC current	20mA/200mA	0.01mA/0.1mA	±(1.8%+5)
AC current	20mA/200mA	0.01mA/0.1mA	±(2.0%+5)
Resistance	200Ω/2KΩ/20KΩ/200KΩ/2MΩ	0.1Ω/0.0001KΩ/0.1KΩ/0.1Ω/0.001MΩ	±(2.0%+5)
	20MΩ	0.01MΩ	±(2.0%+5)
Capacitance	20nF	0.01nF	±(10%+40)
	200nF/2uF/20uF/200uF	0.1nF/1nF/10nF/100nF	±(2.5%+20)
	2000uF	1uF	±(5%+10)
Diode	√
On / off buzzer	√
Zero / Firewire Identification	√
Backlight	√
Floodlight	√
NCV	√
Power supply	2×1.5V AAA
Weight	150g
Size	130mm×62mm×27mm
Safety level	EN61010-1,-2-030,EN61010-2-033, EN613261,CAT.III 600V

Matters needing attention
Do not use the instrument around explosive gas or steam or in humid environment
Do not use a damaged stylus. check whether the insulating layer of the stylus is damaged, whether there is metal leakage or signs of wear. check the on-off property of the stylus
When measuring, please connect the neutral line or ground line before connecting the live line. Please cut off the live wire before disconnecting, and disconnect the neutral wire and the ground wire.
When measuring, please hold your finger behind the stylus protector.
Before opening the back cover of the instrument, disconnect the probe from the object to be measured.
Do not use the meter in an environment that exceeds the CAT rating of the lowest rated single component in the meter, probe or accessory.
