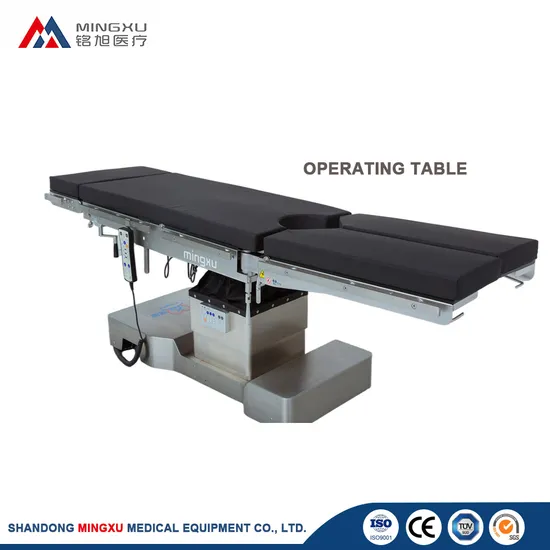

Hydraulic Special Equipments Electric Operating Gynecological Operation Table Medical

Product Description

Product Description

Product Parameters

Table length	2170±20mm
Table width	560±10mm (with side rails) 520±10mm (without side rails)
Table lifting height	540±20mm 1050±20mm
Table lifting travel (electric)	500±20mm
Bed front tilt angle (electric)	Forward tilt ≥ 30° Backward tilt ≥ 30°
Bed tilt angle (electric)	Left tilt ≥ 20° Right tilt ≥ 20°
Headboard folding angle (manual)	Upward fold ≥45° Downward fold ≥90° Detachable
Leg folding angle (manual)	Fold upwards ≥15° Fold downwards ≥90° Extension ≥90° Detachable
Back panel folding angle (electric)	Upward fold ≥85° Downward fold ≥40°
Built-in waist bridge travel	≥120mm
Maximum translation distance of table (electric)	≥300mm
Rated load	250KG

Detailed Photos Functional description:
1. It adopts a full set of hydraulic control systems, with heavy load-bearing, low noise, high safety and reliability, meeting the needs of different surgeries in various departments such as ophthalmology, neurosurgery, thoracic and abdominal surgery, gynecology, urology, ENT, orthopedics, etc. in hospitals.
2. The microcomputer and dual-controller control system is equipped with a safety lock for misoperation to ensure the safe completion of the operation to the maximum extent. It has two independent control systems, the hand control box and the auxiliary switch, to control the operating table. When the hand control box fails, the auxiliary switch can still operate the operating table without affecting the operation.
3. The butterfly base design is convenient for the operator to move and stand for close-range surgery. The outer shell of the operating table base, the outer shell of the lifting column, and the side rails are all made of SUS304 stainless steel, which is easy to clean and scrub, acid and alkali resistant, and corrosion-resistant, ensuring that it will never rust; all stainless steel accessories and surrounds are solid and stable.
4. The tabletop is divided into four movable sections, namely the head board, back board, hip board, and leg board (split type).
All sections are made of materials that can transmit X-rays, and there is an X-ray film box layer under the bed board for filming.
5. Modular design, detachable head and leg boards, and quick-connect devices greatly improve safety and accuracy, meeting the needs of surgical positions.
6. Multi-layer memory foam mattress, excellent pressure distribution can reduce the pressure damage caused by long-term surgery to the patient's extremity tissue, effectively reduce the occurrence of bedsores, waterproof and anti-fouling, easy to clean, anti-static.
7. One-button reset function, only one button is needed to restore the operating table to the horizontal zero position, which is convenient and fast.
8. With one-button flexion/anti-flexion function, it is easy to achieve the lumbar bridge surgical position.
9. Equipped with intelligent electric hydraulic brakes, the four-point base contacts the ground when braking, ensuring that the operating table is stable and reliable, and can be easily fixed on any plane or slope.
10. Four universal wheels make it easier to move and adjust the position of the operating table;
11. Built-in large-capacity batteries can ensure that the operating table works uninterruptedly, and there is an insufficient power warning function.
12. Equipped with accessories with various functions to meet the needs of different surgeries.
13. The ultra-low body position (≤540mm) and ultra-large lifting stroke (500mm) provide the surgeon with sufficient up and down adjustment range.
14. The table can move forward and backward longitudinally, with no dead angle for filming, and the longitudinal movement of 300mm can realize full-body C-arm filming.
15. The split leg board is operated by a pneumatic rod, which is labor-saving and convenient to operate, and can be positioned at any position in the stroke.
16. When the operating table is not operated, the bed will automatically cut off the power supply of the hand control box after 30 seconds to avoid medical staff from misoperation and provide safety for surgery.

Basic configuration list
Operating table bed	1Set
Mattress	1Set
Anesthesia screen	1pc
Armrest	2pc
Leg support	2pc
Body straps	1set
Square Slider	3pc
Hand control	1pc
Power cord	1pc
Product Certificate	1set
User Manual	1set

Company Profile
Certifications


FAQ Q: Are you manufacturer ?
A: Yes,Mingxu Medical is located in Qufu, Shandong Province, with a research and development center of more than 5,000 square meters and a standardized production workshop of more than 20,000 square meters,we have our own R&D team and sales team,We provide you one-stop service.
Q: Do you have CE,ISO13485?
A: Yes,our products are approved by CE,ISO13485
Q: Is OEM &ODM available in your factory ?
A: Yes, you just offer us necessary documents and then we will produce the products as your requirements.
Q: What is your Packing details?
A: 1.Wooden case or carton package,standard export packages
2.All of the productions are inspected carfully by QC before delivery.
Q: What is your Delivery time?
A: Usually, we make merchandise inventory, if we have the products in stock,The delivery time is5-10 days after receiving the deposit; If we don't have the products in stock, we will arrange the production right now, the delivery time will be 20-30days,It depends on the quantity of order
Q: What is your Min.order?
A: 1set

---
