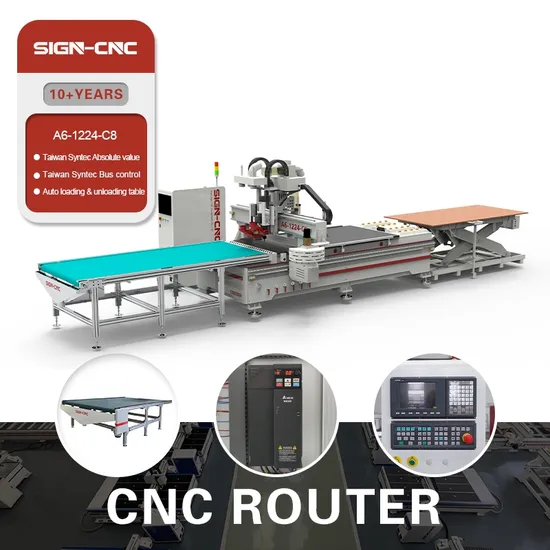

CNC Router Machine Wood Engraving 3D for Plywood MDF etc CNC Machine with Auto Loading and Unloading Table for Panel Furniture

US$19,200.00
1-2 Pieces
US$19,000.00
3-6 Pieces
US$18,800.00
7+ Pieces

Basic Info.

Model NO.
A6-1224-C12
Condition
New
Certification
ISO, CE
CNC or Not
CNC
Voltage
220V
Model
Sign-2040
Size
1200*2400mm
Spindle Height
200mm
200mm
Vacuum Table
Max. Power Consumption
2.0kw
Max. Working Speed
25000mm/Min
Spindle Power
9.0kw Hqd
Spindle Speed
0-24000rpm
Drive Motors
Yaskawa Servo Motor
Control System
Syntec 6MB
Transport Package
Wooden Package
Specification
13 cubic meter package
Trademark
SIGN-CNC
Origin
China
HS Code
8465990000
Production Capacity
1000set/Year

Packaging & Delivery

Package Size
3700.00cm * 2280.00cm * 2200.00cm
Package Gross Weight
1600.000kg

Product Description

CNC router machine wood engraving 3D for Plywood MDF etc CNC Machine with Auto Loading and Unloading Table for Panel Furniture Specification
Model
 AIGN-1224-C12
X, Y Working size
1200*2400mm
Z feed Height
 300mm
Table Surface
 Vacuum table
X, Y Structure
 Rack and Pinion Drive, TBI Linear Square Guide Rail
Z Structure
 TBI Linear Square Guide Rail and Ball Screw
Max. Power Consumption
(Without spindle) 2.0Kw
Max. Rapid Travel Rate
 33000mm/min
Max. Working Speed
 25000mm/min
Spindle Power
 9.0KW HQD ATC spindle
Spindle Speed
 0-24000RPM
Drive Motors
 Yaskawa servo motor and driver
Working Voltage:
 AC220V/50/60Hz
Command Language
 G code
Control System
 SYNTEC 6MB
X,Y,Z repositioning Accuracy
 ±0.01mm
X,Y Resolution
 <0.01mm
Software
 Artcam
Running Temperature
 0 degree - 45 degree
Relative Humidity
 30% - 75%
Optional Parts
 Rotary system,
Panasonic Servo motors

Jinan Sign CNC Equipment Co., Ltd.
FAQ
1. How can I run it ?Send you the operation video and English instruction for use.We provide free technical support 2. What else I need except the machine?computer for design drawing ,ATC machine use air compressor3.What is the warranty?2 years.4. What is your payment?T/T 30% deposit ,70% before shipping. L/C at sight
