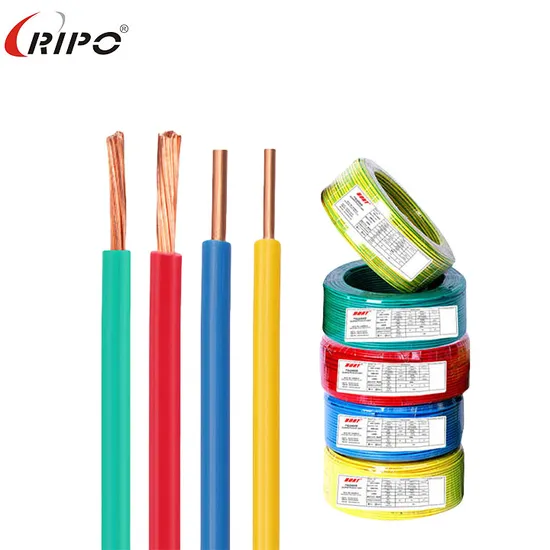

PVC Insulation Building Wire Copper Conductor Electric Wire H07V-U Electric Wire Cable Manufacturing

Product Description

Welcome to Cambo manufacturers direct salesContact us at least 10% discountProduct Description
Construction:
Conductor: Stranded copper wire or Tinned copper wire or Copper clad aluminum wire(CCA Wire) Class6 acc.to IEC60228Insulation:PVC Compound or Rubber compound Sheath:PVC Compound Rubber compoundSheath Color: Black,Red,Orange ,Blue ,Yello/GreenNF C 32-510 - HD 22.6Techical Data:Standard:IEC 60245-6 / NFC 32-510/HD 22.6
Fixed installed: -25ºC up to 80ºC
At short circuit of max.5s up to 250ºC
Nominal Voltage : 100V
Min inner bending radius:12D
Behaviour in fire:
Flame retardant cable acc.to IEC60332-1 Application: Ripo Cable of normal flexibility grade , used as high voltage insulated conductor from electrical welding machine to electrodes, i.e. as earth connection. In addition to hand welding, it can be also applied in automobile industry, shipbuilding, transport systems, production lines, tool manufacturing, welding robots. These cables retain their high flexibility also under the influence of ozone, light, oxygen, protective gases, oils and gasoline. Due to their robust construction, they are also resistant to cold, same as to heat and fire. Suitable for outdoor use, but also in dry and damp conditions.Size Techical Parameter:

No.of cores x Nominal section area	Nominal Construction of conductor	Nominal Sheath thickness	Nominal Overall diameter	Nominal Cable weight	Current Carrying Capacity	Max.Resistance of conductor at 20ºC
No.X mm²	No.X mm	mm	mm	kg/km	A	<=(Ω/km)
1 x 10	320 x 0,20	2,0	9	135	100	1,91
1 x 16	512 x 0,20	2,0	10	205	135	1,21
1 x 25	800 x 0,20	2,0	11.5	302	180	0,780
1 x 35	1120 x 0,20	2,0	12.5	420	225	0,554
1 x 50	705 x 0,30	2,2	14.5	586	285	0,386
1 x 70	990 x 0,30	2,4	16.5	798	355	0,272
1 x 95	1340 x 0,30	2,6	18.5	1015	430	0,206
1 x 120	1690 x 0,30	2,8	20.5	1310	500	0,161
1 x 150	2123 x 0,30	3,0	23	1620	580	0,129
1 x 185	1470 x 0,40	3,2	26	1916	770	0,106
1 x 240	1905 x 0,40	3,4	29.5	2540	880	0,0801

Detailed Photos
Ripo is one famous brand of cable&wire making machines in the world. We push the brand from local to international market since 10 years ago. Up to now, we have moer than 15000 sqm plants to produce many kinds of cable making machines like copper wire drawing machines; plastic Extruder, wire branding machines; auto coiling machines etc. We are located in Dongguan city, it is no far from Guangzhou and Shenzhen, every year we treat a lot of customers from more than 70~ 80 countries.
FAQ
1. Q:Are you a factory or trading company?
A: We are a factory.
2. Q:Where is your factory located? How can I visit there?
A: Our factory is located in Guangdong, China.You can fly to Shenzhen airport directly. We welcome you to visit our factory.
3. Q: Why choose your factory for service?
A: Our factory is specializing in producing cable machines for about 10 years. We can provide thoughtful pre-sale and after-sale service.
4. Q:How does your factory do regarding quality control?
A: "Quality first, customers foremost". We always attach great importance to quality controlling from the very beginning to very end.
5. Q: What is your company mainly produce?
A: drawing machine series, Extrusion line series, Varieties of double twist buncher, Varieties of back-twisting, pair-twisting and double-twist cabling machine, Series of coiling and packing machine,Complete plant of Lan cable, Varieties of single-twist cabling machine, Auxiliary equipment.

---
