HDPE 5 Liter Engine Oil Bottle Blow Moulding Machine Price

Product Description

HDPE 5 Liter Engine Oil Bottle Blow Moulding Machine Price

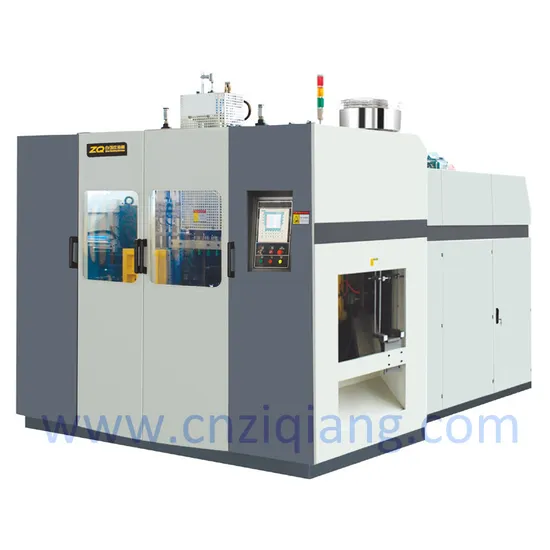

The 2L-16L double station blow moulding machine is different from the single station machine in that it has one additional station with high-precision linear guide, covering four major series of ZQD-2L, ZQD-5L, ZQD-10L and ZQD-16L. The same as the single station machines, it can be used to produce a wide variety of materials, such as PE, PP, and PA.
The largest capacity of the product can be 10L, and its production capacity is 60 to 70% more than the single station machine. In accordance with different type of products, die heads can be changed to achieve multi-type production.
Extrusion Blow Moulding Machine,Setting:
Clamping------------Double station+Hight-precision guide+large arm cylinder axle
Extrusion system--Hard gear surface reducer+Japan inverter
Die system----------Central-incoming extrusion die with special steel
Hydraulic system--Japan hydraulic valve seal and proportional control
Control system----Japan PLC+Imported HMI+PLC automatic
Equipment information.

Specification		ZQD-2L	ZQD-5L	ZQD-10L	ZQD-16L
Material		PE\PP^	PE\PP^	PE\PP^	PE\PP^
Max.container capacity	L	2	5	10	16
Number of die	set	1\2\3\4	1\2\3\4	1\2\3\4	1\2\3\4
Output	pcs/hr	950×2	750×2	700×2	600×2
Machine Dimension	m	2.7×2.0×2.5	3.4×2.2×2.6	3.9×2.3×3	4.9×4×3.1
Total weight	ton	4	6.5	9.5	10
Accumulator head		ZQD-2L	ZQD-5L	ZQD-10L	ZQD-16L
Number of die heating	zone	3	3	3	4
Power of die heating	KW	4.2	5.8	6-7	6-7
Max die-pin diameter	mm	60	80	140	140
Center distance of twin-die	mm	130	160	240	260
Center distance of tri-die	mm	85	110	160	180
Center distance of four-die	mm	65	85	120	130
Clamping Unit		ZQD-2L	ZQD-5L	ZQD-10L	ZQD-16L
Clamping force	KN	38	70	110	155
platen opening stroke	mm	135-370	145-510	230-600	230-600
platen size	mm	280×380	320×390	450×490	500×490
Max mould size	mm	300×320	350×370	520×500	600×500
Mould thickness	mm	135-210	155-300	235-380	235-380
Extruder Unit		ZQD-2L	ZQD-5L	ZQD-10L	ZQD-16L
Screw diameter	mm	60	70	90	90
Screw L/D ratio	L/D	24:1	24:1	25:1	25:1
Extruding Volume	Kg/hr	60-80	100-120	130-160	130-160
Number of heating zone	zone	3	3	4	4
Extruder heating power	KW	5-6.6	6-8.2	8.2-9.3	8.2-9.3
Extruder driving power	KW	15-18.5	22-37	37-45	37-45

Note: The specifications are subject to change without notice for the further improvement.
Note: Custom production accepted. Any client idea tried.

---
