Automatic Pet Plastic Bottle Recycle Washing Crushing Machine Line for Recycled Industry

US$100,000.00
1-2 Sets
US$95,000.00
3-4 Sets
US$90,000.00
5+ Sets

Basic Info.

Model NO.
HR-1000
Material Processed
Plastic Bottle
Plastic Type
PET
Screw
Single-Screw
Automation
Automation
Computerized
Computerized
Certification
CE
Machine Material
Carbon Steel
Capacity
1000kg/H
Crushing Type
Wet Crushing
Processing Type
Label Removing-Crushing-Washing-Dewatering
Washing Type
Hot Washing
Material
Pet Bottle
Final Product
Clean Pet Flakes
Flakes Size
12mm, 14mm, 16mm, 18mm, 20mm
Transport Package
Film
Specification
20000kg
Trademark
Haorui
Origin
China
HS Code
8479820090
Production Capacity
10set

Packaging & Delivery

Package Size
2500.00cm * 300.00cm * 400.00cm
Package Gross Weight
20000.000kg

Product Description

Product Parameters

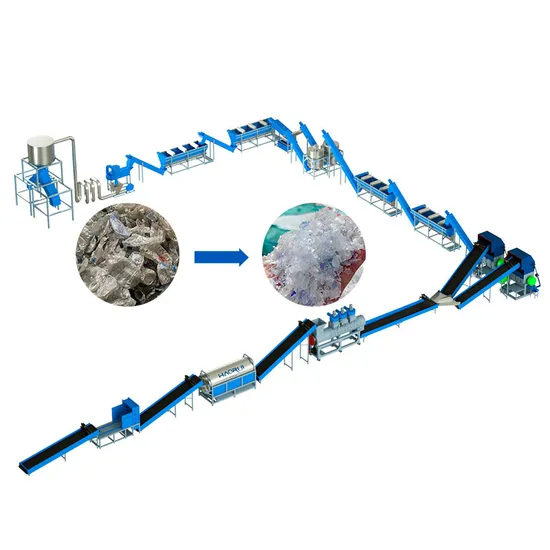

The PET bottles recycling washing line from PET bottles to washed cleaned PET flakes.
Machine name Model Function Capacity
Coneyor Belt 800 Type Transport the bottles to label remover 1200kg/h
Label Remover 600 Type Removing the label from bottles 1000kg/h
Sorting Platform 800 Type Removing the bottle that with label
Coneyor Belt 800 Type Transport the bottles to crushing machine 1200kg/h
Crushing Machine 1000 Type Crushing the PET bottles into flakes 1000kg/h
Screw Loader Transport the PET flakes for floating tank
Floating Tank Washing PET flakes and separate caps
Screw Transport PET flakes to hot washing tank
Hot Washing Tank Hot washing PET flakes 1000kg/h
Screw Transport PET to floating tank
Floating Tank Washing PET flakes
Screw Transport PET falkes to dewatering machine
Dewatering Machine 600 Type Removing water from PET flakes after washing

Product Description
Company Profile
HAORUl Machinery was established in 1992a professional manufacturer & exporter of PETbottle recycling machine, PP PE plastic bag/film /bottlerecycling machine,pelletizing machine etc.
We already helped over 40 clients solve the plasticrecyclinginvestment solution in Africa, Asia, Middle EastSouth America etc.
We have over 300 employees, an annual salesfigurethat exceeds USDl0million dollars and arecurrentlyexporting 30% of our production.
Always insist on "quality is first" and inspect afterproducing which makes us more popularin Domesticand gained a global sales network all over the world.
There are over 100 technicians in our workshopswhich covers 20000m2.0ver 30 yearsexperience and our 9 persons' R&D team make ourmachine design uniqueOEM &ODM are welcome.

Packaging & Shipping

FAQ

FAQ:
Q: How often are the Crusher blades sharpened?
A: After continuous working at 30-40hours, the blades have to be sharpened
Q: How long does it take for changing blades-Remove and install blades?
A: Depending on the worker skilled or not. Normally 2-3hours
Q: How about the rate for removing the labels by Label remover?
A: Compressed bottle: more than 96%
Un-compressed bottle: more than 98%
Q:What's the temperature of steam washer ?
A: Usually 80-90ºC ( If the temperature is over 100ºC, the Flake will be roll.so the best temperature
is 80-90ºC)
Q: What's the moisture after Horizontal dewatering machine?
A: About 1.8%. Adopt Swedeen bearing, with bearing layer on the surface of screw blades
for longer working life.
Q: How often are the Crusher blades sharpened?
A: After continuous working at 30-40hours, the blades have to be sharpened
Q: How long does it take for changing blades-Remove and install blades?
A: Depending on the worker skilled or not. Normally 2-3hours
