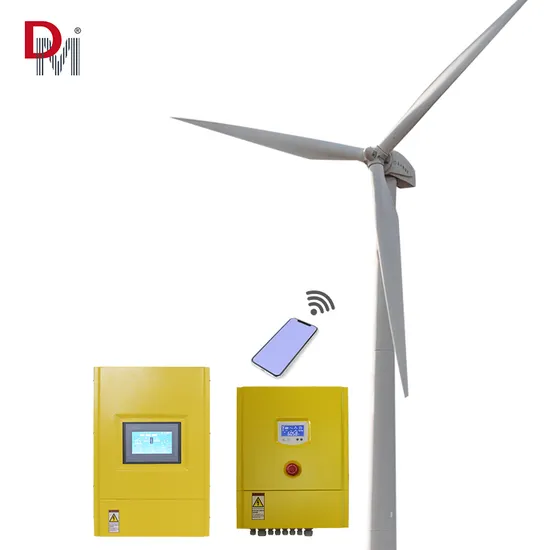

Factory Price on Grid Wind Turbine Generator Inverter with CE 2kw 3kw 5kw 10kw GPRS WiFi

Product Description

Product Description The On grid wind turbine system is composed of wind turbine, on grid controller, on grid inverter, metering device, and power distribution system. Wind energy is converted into AC electrical energy by the wind turbine, and then converted into DC electrical energy by the on grid controller, and then DC electrical energy is converted into AC electrical energy of the same frequency and phase as the grid by the on grid inverter, and part of the power is supplied to the local load. Surplus power is fed into the grid.
On grid wind turbine inverter performance characteristics
(1) The main circuit uses the DSP chip produced by the American TI company, German Infineon IGBT module, drive protection is the Japanese Mitsubishi movement, and the on grid output part use isolation transformer, which is safe and reliable;
(2) Using SPWM pulse width modulation technology, pure sine wave output, automatic synchronous tracking with the grid, power factor close to 1, low current harmonic content, no pollution to the grid, no impact;
(3) Wind turbine input maximum power tracking technology (MPPT)
(4) The power curve of the wind turbine can be set, the default is 20 points, and the internal expansion is 50
(5) 7-inch color touch screen display, system operation data and fault information at a glance, and convenient parameter setting;
(6) On grid inverter current closed-loop control, controllable and adjustable;
(7) The input DC voltage range is wide, adapt to the needs of different occasions;
(8) Frequency disturbance detection technology to realize anti-island control;
(9) The comprehensive power protection scheme and perfect self-detection and protection functions will stop the on grid inverter when a system failure occurs.
(10) Circuit structure is compact, the maximum efficiency≥98%
(11) Support RS485, WiFi, GPRS, Ethernet and other communication methods. You can monitor the working status of the on grid wind power generation system in real time through the PC or mobile phone, and you can also query the historical working status. The mobile terminal is compatible with Android and IOS. All data can be connected to the Internet of Things.

Detailed Photos

Product Parameters

On grid wind turbine controller			WGMC3K220		WGMC5K220
Wind turbine input
Power			3KW		5KW
Max. Control power / current			6KW/20A		10KW/34A
Rated voltage of wind turbine (AC)			220V		220V
Input voltage range		AC	0-330V		0-330V
		DC	0-450V		0-450V
Braking voltage (DC)		Default	350V±1%		350V±1%
		Set range	320-350V		320-350V
Braking current (DC)		Default	15A		25A
		Set range	0-15A		0-25A
Braking time		Default	10-20 min
		Set range	0-5000 min
* Generator overspeed control		Default	>300 rpm/min
		Set range	0-1000 rpm/min
* Over wind speed control		Default	14 m/s
		Set range	0-45 m/s
Manual control		Manual brake,*remote control brake (with communication function)
Automatic control function		Dump load control, * yaw, * pitch, * mechanical brake, * hydraulic brake, * electromagnetic brake
* PV. Input
Rated power (increased)			3KWp		3KWp
Working voltage (DC)			320V / 400V		320V / 400V
DC output parameters
Output voltage range (DC)			0-350V		0-350V
Constant voltage (DC)		Default	310V±1%		310V±1%
		Set range	300-330V		300-330V
Constant current (DC)		Default	12A		20A
		Set range	0-12A		0-20A
On grid wind turbine inverter			DMWG3KTL		DMWG5KTL
Rated output power (AC)			3KW		5KW
Max. Output power (AC)			3.3KW		5.5KW
Input voltage rang (DC)			0-450V		0-450V
MPPT Voltage range (DC)			100V-400V		100V-400V
Max. Input current (DC)			11.2A		18.7A
Rated current			10.2A		17A
THD Current harmonic			<3%(at rated power)
Power factor			>0.99
Max. efficiency			98%
Allowable grid voltage range (AC)			110V/120V/220V (Single-phase)±20%
Allowable grid frequency range			50Hz/60Hz±10%
Automatic operation conditions			DC input and power grid meet the requirements, the inverter operates automatically
Restart time after power failure			2min(Adjustable)
General parameters
Function	Rectification, DC output, output voltage control, output current control, Dump load control, control parameter setting, wind turbine curve setting
Automatic protection	Control part: Over voltage protection, over current protection, reverse connection protection, lightning arrester Inverter part: Polarity reverse connection protection, short circuit protection, island effect protection,LVRT,overheat protection, overload protection, ground fault protection, etc
Display	Touch screen, LCD
Monitoring content	Wind turbine voltage , current, power, solar panel voltage, current, power, DC output voltage, current, power, inverter output power, * cumulative power generation, * power generation at any time, * rotational speed, * wind speed
Protection level	IP20(Indoor)IP65 (Outdoors)
Telematics	RS485/USB/GPRS/WIFI/Ethernet (optional)
Environment	Operating amb. Temp. & Hum -30-60°C,<90% no condensation
Noise (1m)	<40dB
Refrigeration mode	Forced air cooling
Controller size / weight	360*230*480mm 17kg			360*230*480mm 18kg
Dump load size / weight	400*400*250mm 12kg			600*450*380mm 28kg
Inverter size / weight	450*275*770mm 39kg			450*275*770mm 44kg

*Above parameter only for reference. Could be custom made to user specifications.

*Above parame

*Aboe pameter only for reference. Could be custom
