Automatic Filament Winding Machine for FRP GRP Fiberglass Elbow

Product Description

1. Company Profile:
Our company is a member of the Industry Association, and is a scientific and technological enterprise specializing in the development and production of FRP GRP GRE equipment. Since its establishment, the company has been committed to the research and development of FRP GRP GRE equipment, and has successfully produced the fifth generation winding equipment so far. The technical level occupies a leading position in the same industry in China. At present, the equipment produced by our company is sold all over the country. Has achieved a good reputation, we are willing to first-class quality, first-class after-sales service for the majority of users.
2. Technical parameter

S/N	Description	Technical parameter	Remarks
1	Diameter range of products to be made	DN25-DN300
2	Center height of winding machine	1200MM
3	Spindle power	5.5KW
4	Speed of spindle	0-45rpm
5	Swing arm rotation speed	30 r/min
6	Swing arm rotation control mode	Swing oil-cylinder
7	Transverse stroke of swing arm	N/A
8	Longitudinal stroke of swing arm	N/A
9	Swing arm movement control mode	N/A
10	Tail shaft telescoping mode	Oil cylinder
11	Tail shaft telescoping stroke	500mm
12	Rated working pressure of hydraulic system	14Mpa
13	Equipment power	8KW

3.Application and characteristics
1) Application: It is applied to the manufacture of fittings such as tees and elbows for FRP pipes.
2)Features: simple mechanical structure, convenient maintenance, swing arm controlled by hydraulic system, large working torque and adjustable speed, easy for operators to use.
4.Main structure principle

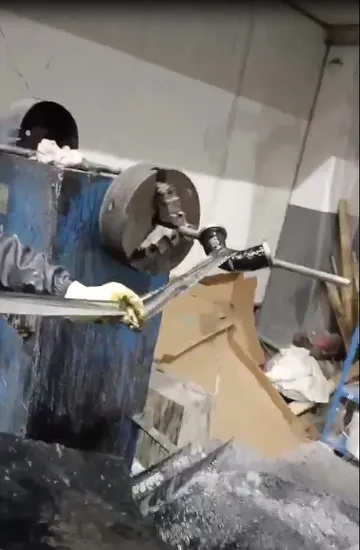

The machine head is driven by the motor reducer, the three-jaw chuck plates clamps the fitting mold, the tailstock passively supports the mold, and the product is produced through the swing of the swing arm.
5.Equipment configuration list

S/N	Description	Main parts	Technical parameter	Brand
1	Control system	Frequency changer/inverter	5.5KW	Powtran
		Electric box	400X500X300	Fangchen
		Contactor	CJ20	CHINT
2	Transmission system	Reducer machine	XWD5-35-5.5W	Xieshun
		Ordinary motor	Y132S-4-B5-5.5KW	Mengniu
		Leather belt	B-triangle belt
3	Hydraulic pressure system	Hydraulic pump station	Volume 150L	Fangchen
		Hydraulic oil pump	CB-Fa10C-FL	Changsheng
		Hydro cylinder	HSG63-500	Hengyu
		Hydraulic reversing valve	DCF-30-HE/CR220	Jingchuang
		Swing cylinder	ZCFKD-63-180
4	Guide rails (bearings, etc.)	Bearing	UCFU216 outer spherical bearing	Harbin
5	Machine Frame	Base	14# channel steel	Fangchen
		Baseboard	Q235	Fangchen
		Spindle	45#	Fangchen
		Flange plate	Q235	Fangchen
		Resin Tank	Stainless steel	Fangchen
		Resin tank frame	Stainless steel	Fangchen
		Roving rack	Profile	Fangchen
		Swing arm	60X60 square tube	Fangchen

---
