Ultrasonic Water Meter with Valve Control Zigbee Lorawan Wireless Communication

Product Description

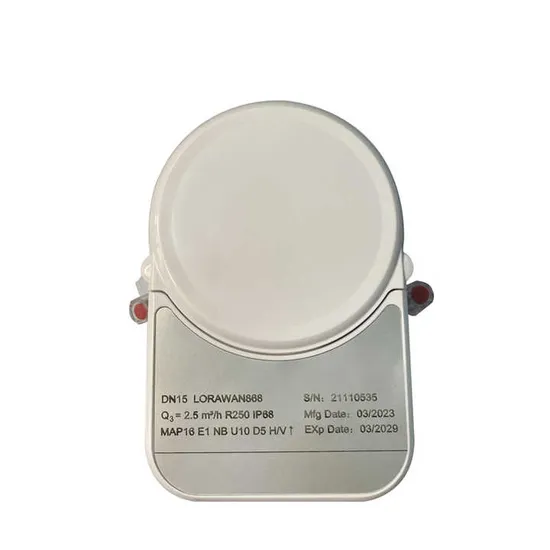

DN15 ultrasonic prepaid water meter with Valve Control LoRaWAN zigbee
Product features: 1. Ultrasonic valve control meter is a new intelligent fully electronic valve control water meter that uses ultrasonic detection technology. This instrument integrates measurement, integration, display, valve control, and MBUS remote transmission. It adopts micro power consumption technology, and the battery can be used for more than 8 years to achieve accurate measurement of the minimum flow rate of 0.001 m3/h. At the same time, the instrument has characteristics such as small size, good stability, and strong anti-interference ability. 2. Adopting ultrasonic flow measurement technology, it can achieve multi angle installation, without affecting instrument measurement, while minimizing pipeline pressure loss. 3. The valve switch can be remotely controlled through NB wireless to achieve remote control of water usage by users. 4. Specially used for household measurement in residential communitiesExecutive standards:GB/T778.1-2007 Measurement of Water Flow in Closed Full Pipelines - Drinking Cold Water Meters and Hot Water Meters - Part 1: Specifications, GB/T 778.2-2007 Measurement of Water Flow in Closed Full Pipelines - Part 2: Installation Requirements, GB/T778.3-2007 Measurement of Water Flow in Closed Full Pipelines - Drinking Cold Water Meters and Hot Water Meters - Part 3: Test Methods and Equipment
Operating instructions: The user can switch between the display screens with the magnetic bar, view the relevant data measured by the instrument, and display it in cycles. As shown in the figure:
Technical Parameter:

Parameter	Performance
Nominal diameter (mm)	DN15~DN25
Q3/Q1	250
Pressure loss level	Δp40
Measured medium	Water, homogeneous liquid, and fill the pipeline under
Accuracy level	Level 2
Maximum allowable working pressure	1.0MPa
Work environment	5ºC~+55ºC,≤100%RH
Temperature class	T30
Working power supply	1. Battery power supply DC3.6V (battery can work continuously for more than 8 years); 2. Two batteries, one for the electronic part and the other for the motor (the battery can be replaced regularly) 3. External 24V power supply can be realized according to demand
Power waste	<0.2mW
Protection grade	IP68

---
