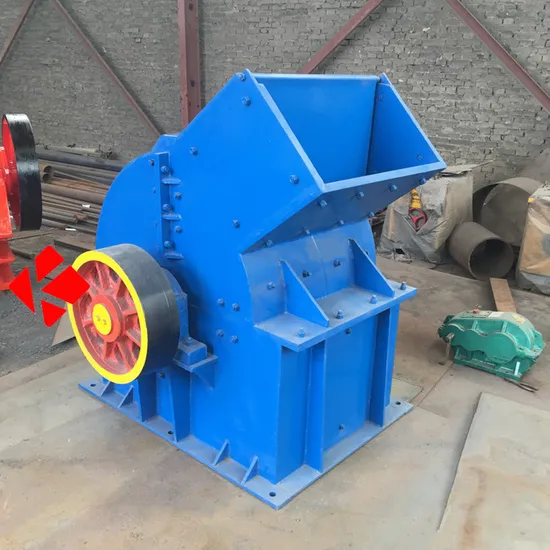

Mining Crushing Equipment Rock Gold Grinding Crusher Machine Hammer Crusher

Product Description

Product Description Hammer crusher machine is a coarse crushing equipment widely used in mining, construction, building materials, highways, railways and other fields.
Working Principle The working principle of the hammer crusher is based on the squeezing effect between the movable hammer plate and the static hammer plate. The motor drives the eccentric shaft to rotate through the belt, causing the movable hammer plate to periodically approach and leave the static hammer plate, thereby squeezing, rubbing, grinding and other multiple crushing processes for the material.
The structure of the hammer crusher mainly includes the frame, eccentric shaft, large pulley, flywheel, movable hammer, side guards, toggle plate, toggle plate rear seat, gap adjustment screw, return spring, fixed hammer plate and movable hammer plate, etc. Features include: Simple structure, easy to maintain and operate. The crushing ratio is large and larger materials can be broken into smaller particles. Stable performance, reliable operation, able to adapt to various harsh working environments
Machine Parameters

Model	Feed/Output size(mm)	Capacity	Power (kw)
PC300*200	≤5-15	800kg/h	5.5
PC400*300	≤10	1-5T	7.5
PC600*400	≤15	5-15T	18.5
PC800*600	≤15	20-35T	45
PC800*800	≤15	35-50T	55
PC1000*800	≤15	40-60T	115
PC1000*1000	≤15	50-80T	132
PC1400*1400	≤15	80-200T	280

Product Details
Application
Product Show
Crushing
Company Profile
Henan Kaichuang Machinery Equipment Co., Ltd. is a modern enterprise focusing on the research, development, production and sales of stone crushers. The factory is located in Gongyi, Zhengzhou, Henan, with advanced production equipment and strong technical force.
Our factory has an experienced R&D team who constantly pursues innovation and combines market demand and advanced technology to carefully design a variety of stone crushers with excellent performance, high efficiency and energy saving. These products cover hammer crushers, impact crushers, cone crushers, hammer crushers and other types, which can meet the diverse needs of different customers in the fields of ore crushing, construction waste processing, road construction and other fields.
The factory has a professional after-sales team to provide customers with comprehensive service support such as equipment installation and commissioning, technical training, and maintenance. No matter where the customer is, as long as they encounter a problem, we can respond quickly to ensure that the customer's production is not affected.
Over the years, our stone crushers have been selling well in domestic and foreign markets and have won widespread praise and trust from customers. In the future, Henan Kaichuang Machinery Equipment Co., Ltd. will continue to adhere to the business philosophy of "quality first, customer first", continue to innovate and progress, provide customers with better products and services, and contribute to the development of the stone crushing industry.

---
