20 Ton Super Thin Single Hydraulic Jack (FPY-20)

Product Description

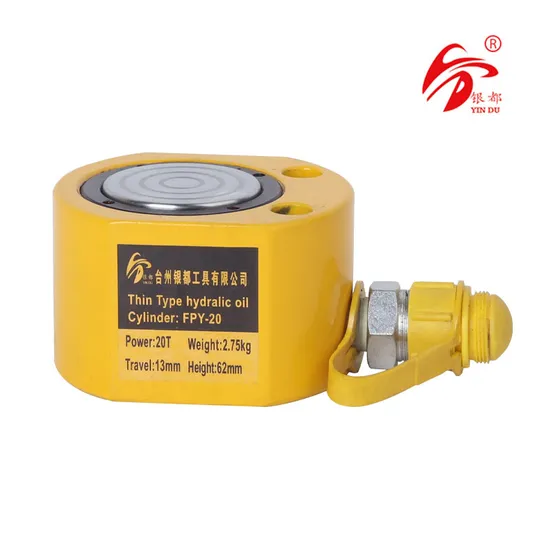

Super thin single hydraulic jack FPY-20

Model NO.	Tons(T)	Cylinder effective area(cm3)	Cylinder inside DIA(MM)	Cylinder Outside dia (mm)	Travel(mm)	Weight(kg)	Collapsed height(mm)	pump
FPY-5	5	9.6	35	64*48	7	0.7	41	Cp-180
FPY-10	10	10.89	45	83*62	11	1.6	53	Cp-180
FPY-20	20	33.16	65	102*80	13	2.7	62	Cp-180
FPY-30	30	50.24	80	125*105	14	5	66	Cp-700
FPY-50	50	78.5	100	155*130	18	8.5	77	Cp-700
FPY-100	100	143.06	135	206*175	21	19.25	93	Cp-700
FPY-150	150	226.8	170	207	21	23	88	CP-700
FPY-200	200	302.5	196.3	247	21	35.6	101	CP-800

Features&functions:
1. With the low height, it is fit for the operation condition of narrow and small space. It has short distance, and heighten for several times.
2. The surface of main shaft is processed with chromium hardening treatment, so that the service life is increased.
3. The main shaft has the automatic shortening function.
4. All YINDU series jack require a solid lifting surface for correct support. Using jack on surfaces such as sand, mud or dirt may result in jack damaged.
