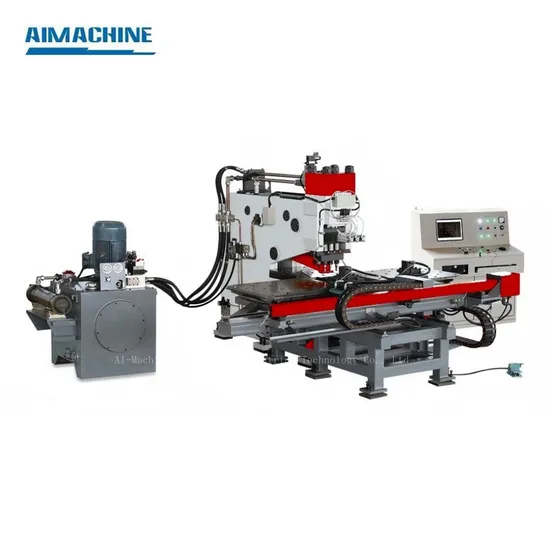

Tower Steel Structure Hydraulic CNC Steel Plate Punching Drilling Machine

Product Description

Product Description
1.The machine-frame is made by C-type plate welding, with good rigidity and big handling space.
2.The machine sets three die-stations (among them, one is the marking die-station), automatic switching die-stations. Clamping system can adapt to different work piece.
3. Adopt CNC technology, servo motor in feeding, with high efficiency, stable work piece precision.
4. Important functional components adopt modular assembly, easy to repair it.
5. Carry out punching, marking and drilling on the one plate.
6.Drilling unit has the functions including rapid falling, slow work-feeding and quick feeding back to improve working efficiency.
7. Easy programming, may input the diameter of holes, position and the quantity of work piece to computer, and also may use the program generated by lofting software, or adopt direct conversion CAD/CAM.
8. With function of self-diagnosis for failures.
9.Lighten the working strength of workers.
Product Parameters

Model	SPP1580	SPP2560	SPP3350
Max size of work piece L×W(mm)	1500×800	2500*600	3300*500
Max. diameter of punching (mm)	Φ26	Φ30	Φ30
Plate thickness of punching (mm)	5~25	5-30	5-30
Punching force (KN)	1000	1400	1400
Marking force (KN)	800	1000	1200
Min. distance between hole and plate edge (mm)	25/30	25/30	25/30
Qty.of Punch Die	3	3	3

Company Profile
AI-Machine(Shandong) Industry Technology Co.,Ltd is a high-tech company known for its advanced technology and perfect after-sales service. The company is mainly engaged in CNC Machines for angle steel tower, CNC Machines for steel structure ,CNC metal coil processing complete sets of equipment, like circle blanking line, cross-shear line, slitting line for hot-rolled and cold-rolled series plate.
Other products
FAQ
1. The delivery time?
For machines available in stock, the shipment can be arranged within 15 days after getting advance payment or L/C;
For machines non available in stock, the shipment can be arranged with 60 days after getting advance payment or L/C.
2. After-sale service?
1) We can send you free components if machines are in warranty period;
2) 24 hours service on line;
3) We can assign our engineers to serve you if you want.
3. Installation and Training?
Yes. We can send professional engineers to the working site for machine's installation, commissioning and operation training.
4. Model choose?
Please share us your material size and your processing request, then we will recommend our machine most suitable and most cost effective for your work demand.

---
