Basic Info.
Type
Industrial Aluminium Profile
Window & Door Aluminium Profile
60 Series
Surface Finishing
Anodic Oxidation
Polished Aluminum Profile
Mechanical Polishing
Color
Sliver/Black/Custom
Payment Term
Tt in Advance
Transport Package
Exoport Packing or According Requirement
Packaging & Delivery
Package Size
5.00cm * 5.00cm * 2.00cm
Package Gross Weight
1.000kg
Product Description
Extruded Aluminum Profile Product Description PG45 extruded aluminum profile is a dimension with increased loading capacity. The higher load-carrying capacity can prevent heavy frames from pre-tension losses.
2 series modular dimensions 45 in stock:
-Strut profiles slot 8 with decorative molding on surface
-Strut profiles slot 10 with satin surface treatment. The sturdy design of 10.2mm slots makes it possible for especially strong connections.
| Series | Modular Assembly System |
| Profile Group | PG 45 |
| Material | 6063-T5 |
| Surface Treatment | Anodized (none for section) |
| Effective Length | 6000mm |
| | A long frame (~ 6000 mm) can also be customized. |
| Color | Silver/ Customized |
Product Parameters
| T Slot | Cross
Section | Core
Hole | Slot Width | Slot
Depth | Wall
Thickness | Profile Group |
| (mm) | (Ø) | (mm) | (mm) | (mm) |
| | 12 | 8.2 | 12.5 | 4 | PG 45 |
Dimensions of PG 45 series
| Description | Moment
of
Inertia
lx(cm4) | Moment
of
Inertia
ly(cm4) | Moment
of
Resistance
Wx(cm3) | Moment
of
Resistance
Wy(cm3) | Mass
(kg/m) | Part No. |

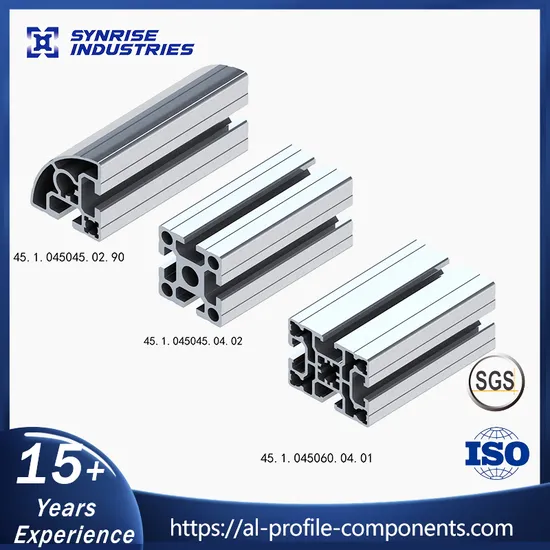

| 45x45, 2 slots, R90 | 12.40 | 12.40 | 5.50 | 5.50 | 1.50 | 45.1.045045.02.90 |
| 45x45, 4 slots | 14.20 | 14.20 | 6.40 | 6.40 | 1.90 | 45.1.045045.04.01 |
| 45x45, 4 slots, Heavy | 16.40 | 16.40 | 7.30 | 7.30 | 2.60 | 45.1.045045.04.02 |
| 45x60, 4 slots | 16.56 | 28.54 | 7.50 | 9.60 | 2.40 | 45.1.045060.04.01 |
| 45x90, 6 slots | 26.00 | 98.30 | 11.60 | 21.90 | 3.25 | 45.1.045090.06.01 |
| 45x90, 6 slots, Heavy | 30.40 | 121.50 | 13.50 | 27.00 | 4.45 | 45.1.045090.06.02 |
| 90x90, 8 slots | 178.00 | 178.00 | 39.50 | 39.50 | 5.75 | 45.1.090090.08.01 |
>>
