| Negotiable | 1 Set (MOQ) |

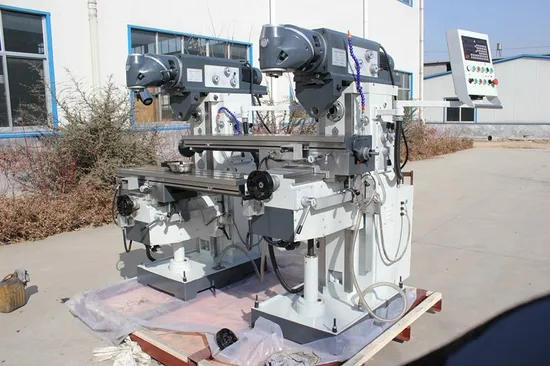

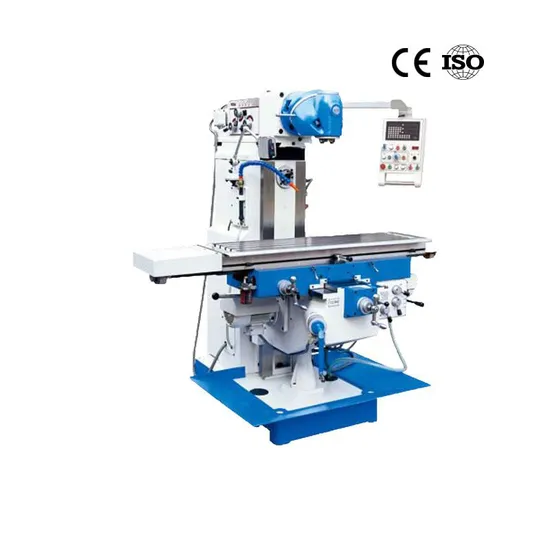

| Universal Milling Machine X6432 |
| Specifications | X6432 |
| Table size | 1320x320 mm |
| X-axis travel (manul) | 1000mm |
| Y-axis travel (manul) | 300mm |
| Z-axis travel | 400mm |
| Distance vertical spindle to table surface | 220-660mm |
| Distance vertical spindle to column surface | 100-600mm |
| Ram travel | 380mm |
| Spindle taper | ISO40(V) / ISO40(H) |
| Spindle speed range (Vetical) | 45-1660rpm (8 steps) |
| Spindle speed range (Horizontal) | 40-1300rpm (8 steps) |
| T-slot size | 14mm/63mm/5 |
| Feeding rate (X/Y) | 20-360mm/min |
| Feeding rate (Z) | 422mm/min (only rapid) |
| Rotation range of spindle | ±360º |
| Table swivel angle | ― |
| Main Motor power | 3KW (V/H) |
| N.W/G.W | 2100/2300kg |
| Standard Accessories | Optional Accessories |
| Machine Work lamp | Swivel worktable |
| Coolant system | Digital readout system |
| CE electrical cabinet | Big table 1600mm |
| Pendent control station | Spindle protect guard |
| Drill chuck | Slotting head |
| Drawbar | Deluxe pendent control station |
| Chip tray | Dividing head device |
| Manual lubrication oil pump | Rotary table |
| Clamping kit | |
| Vice |
