OEM/ODM Chinese Manufacturer CNC Metal Sheet Cutting with Separate Electric Cabinet 3015 4020 6020 Ipg/Raycus/ Max Fiber Laser Cutting Machine for Plates

US$12,500.00-15,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
FY-3015
Application
Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Structure Type
Desktop
Laser Classification
Solid Laser
Laser Technology
Continuous Laser Cutting
Model No.
Fy-3015
Laser Source
Max / Raycus / Gw / Reci Laser Source Stable with
Power
1000 - 40000W
Laser Cutting Head
Raytools / Wsx / Au3tech /Ospri Autofocus Laser He
Control System
Cypcut / Weihong / Au3tech Control System
Maximum Acceleration
1.0g
Cutting Area
3000*1500mm
Maximum Movement Speed
120m/Min
Laser Power
1000W-6000W
Machine Weight
3500kg
X/Y Positioning Accuracy
±0.02mm/M
Powerlaser Cutting Head
Raytools / Wsx / Au3tech /Ospri Autofocus Laser He
Productivity
500 Units Per Year
Transport Package
Plastic Film and Wooden Frame
Specification
4550*3300*2200mm
Trademark
Farin
Origin
China
HS Code
8456110090
Production Capacity
500 Pieces/Year

Packaging & Delivery

Package Size
4550.00cm * 3300.00cm * 2200.00cm
Package Gross Weight
3500.000kg

Product Description

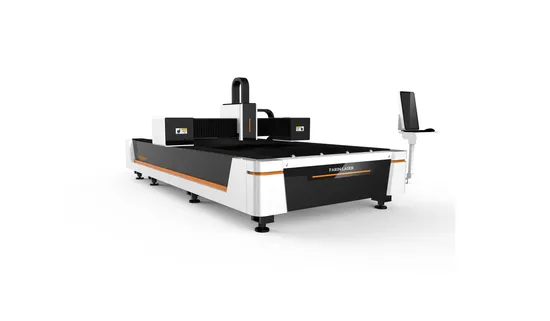

Machine pictures

Product Description
Single-platform fiber laser cutting machine has fast speed, high precision and good quality. It can cut metal sheet with smooth surface and flexible
processing. It can design any complex cutting pattern without mold, which can effectively reduce processing cost and non-contact cutting. , no damage
to the surface of the workpiece, environmental protection and no pollution; the technology of this scheme is mature, and it has been used in mature
models since 2008. The design of the model is reasonable, the appearance is simple and elegant, low cost, and it has production engineering drawings.
Detailed Photos

Detail photos
Product Parameters

Model FY-3015 FY-4015 FY-4020 FY-6015 FY-6020 FY-6025 FY-8025
Cutting area 3000*1500mm 4000*1500mm 4000*2000mm 6000*1500mm 6000*2000mm 6000*2500mm 8000*2500mm
Laser power 1000-40000W
Repositioning accuracy ±0.02mm
Maximum moving speed 120m/min
Max.accelerated speed 1.2G

Machine configuration
MAX / Raycus / GW / Reci laser source stable with low failure rate
Modular and redundant design
Small size, light weight
Easy to integrate; high power
Excellent beam quality
Low energy consumption; good stability
No gas, green and environmental protection
Raytools / WSX / Au3tech /Ospri autofocus laser head
The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness.
Piercing is fast.
3 layers protection lens,have a higher protection ability to core parts of laser head
System: FSCUT Cypcut / Weihong / Au3tech control system
with English language.
Integrated laser cutting special function module, powerful function, good man-machine interface, simple operation, easy to learn and understand.
Compatible with a variety of CAD, DXF, AI, IGS drawing formats, intelligent discharging and saves costs, automatic cutting path matching saves processing time.


Packaging & Shipping

Company Profile
Farin CNC Machine is a integrating stock group company in researching and developing, manufacturing and trading at Metal processing industry.
Our products including CNC metal drilling and milling machine, Angle steel making machine, fiber laser cutting machine, ultra-high power10,000-watt laser cutting machine, plate and tube integrated laser cutting machine, automatic loading and unloading laser cutting machine, hand-held laser welding machine and other equipment. They are mainly used for processing angle steel, metal plates, H-beam, channel steel, box steel, round steel, flange plates and so on in power towers, transmission tower, telecommunications tower, steel structures, central air-conditioners.automobiles, household appliances, petrochemicals and construction industry.
With the developing of the brand efficiency in the international market. Farin CNC Machine increase the investment constantly into the R&D department, in ensuring the stably of the existing products, we constantly absorb quintessence experience of the industry, so that ensure our technology always in the advanced position. Meanwhile, Farin CNC Machine constantly strengthen internal management, so as to realize much more benefit and make great development from the advanced manage method.
Therefore, our products has been exported to more than 100 countries and districts, such as Southeast Asia, North America, South America Africa and Middle East. And get high appreciated from all over the world.With our management idea "let's offer the excellent serves for you!", we created a newly development road and edged into famous brand of the world!
Sincerely hope to grow up hand in hand and have good future altogether.

After Sales Service
1. Pre-sale services
Before signing a contract, our company provides customers a variety of production technology proposal, technical advice of laser equipment, sample specimens, equipment selection, and price etc. all aspect of consulting and services. We sincerely welcome customers to visit our company and factory, and we provide customers reception staff, food, transportation and other facilities.
2. Sale of services
Based on the contract, we delivery laser machine to customers place safely within the specified time. We provide online technical training. The training as follows:
Ø Training operating instruction of turning on and off machine; Ø Meaning of panel and control parameters, Ø Training parameter selection range; Ø Training control software operation ; Ø Basic maintenance and cleaning of the machine; Ø Dealing with common hardware problem; Ø Noted question in operating ; Ø In addition to, we also provide users technical support related their producing products. 3. After-sale services
1. One years warranty of machine. Fiber optic cables and QBH interface are not warranted, as long as the fiber optic cable is not intentionally twisted, it can be used always. In the warranty period, if it breaks down or some parts damaged (Except the human factors and the factors of force majeure), the seller should be responsible for repair for free, the parts need to be replaced will be provided from seller for free (Except the quick-wear part).
2. Customer service will be feedback within 12 hour.
3. We provide machine lifetime maintenance services though warranty expires.
4. Offered a wide range of hardware and software support after the warranty expires, enjoy free upgrades
Why choose us?1: About FARIN laser:
High quality OEM factory provides 2.5 years warranty
Customized R&D capabilities,High-performance manufacturing capabilities, professional certification and recognition
2: Technology research and development:
Environmental advantages: dust-free, quiet, environmentally friendly
3: Customer service advantages: 7*24H quick response service. 24 hours online service
4: Free training:
User-friendly English manual and video CD for easy machine use and maintenance.
5: Warranty: 2.5 years for machine bed, 2 years for spare parts, and 1 year for laser head.
FAQ:1 Q: Are you a factory or a trading company?
Answer: We are a factory that manufactures fiber laser cutting machines and CNC plasma cutting machines with 10 years of experience in the CNC industry.
2 Q: Do you have after-sales support?
A: Yes, we are happy to provide advice. We provide lifetime maintenance services for our machines. If you have any doubts, please contact us. We will respond within 1 hour.
3Q:1 I'm not sure if this machine is suitable for my job?
A: No need to worry, just tell me your cutting material, maximum working area and cutting thickness, then I will recommend you the most suitable machine and model.
4Q: What should I do if there is a problem with the machine?
A: If you encounter such problems, we provide online services and you can contact our sales. In addition, we also provide engineer installation services repair services. We will try our best to solve your problem.
