Cardboard Making Machine Zj-V5b Hydraulic Mill Roll Stand From Yike Group

Product Description

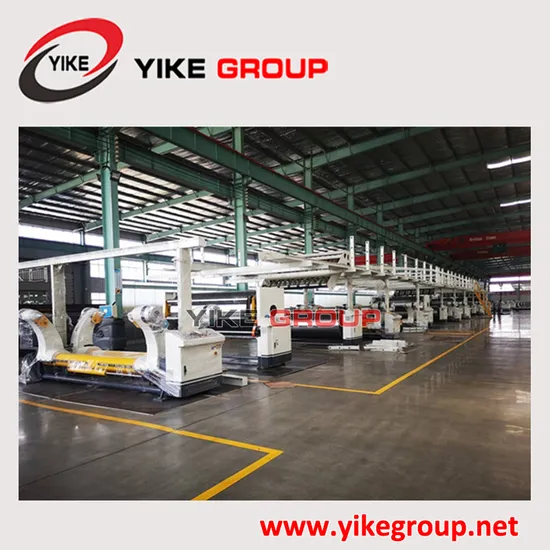

Cardboard Making Machine ZJ-V5B Hydraulic Mill Roll Stand from YIKE GROUP
Hydraulic mill roll stand Specification

Symmetrical structure can install two rolls of paper at the same time and continually change paper, paper roller clamp, lift-lower, loosen, movement, contraposition, translation etc.

Equipment was made of HT200-wide casting.

Maximum loading of one side arm 1500-2000kg

Each stand with two set track and trolley for carry paper.
Pneumatic braking

Electrical components are controlled centralized(domestic brank)
One set main motor power of hydraulic mill roll stand is 2kw, each arm power 1.5*4kw
I,Structural features:
1.Adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive.
2.Brake adjustable adopts multipoint braking system.
3.Each paper rack is equipped with two paper carts that can be served simultaneously from both sides.
II,Technical parameter
1,Paper clip range maximum : 1800mm minimum : 1000mm
2,Folder diameter maximum : 1500mm minimum : 350mm
3,Main shaft diameter of paper holder:¢240mm
4,Gas source work pressure(Mpa):0.4---0.8Mpa
III,Hydraulic system parameters
1,Work pressure(Mpa):16---18Mpa
2,Lifting hydraulic cylinder:¢100×440mm
3,Clamping hydraulic cylinder:¢63×1300m
4,Hydraulic station motor power:3KW --380V -- 50Hz
Solenoid valve voltage:220V 50 Hz

FAQ
1. who are we?
CHINA YIKE GROUP, Which based in Hebei, China, start from 2002,sell to Mid East(24.00%),South America(21.00%),Eastern
Europe(15.00%),Africa(10.00%),Southeast Asia(10.00%),North America(5.00%),Western Europe(2.00%),Southern Europe(2.00%),Eastern
Asia(10.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Firstly pre-production sample before mass production;
Secondly Inspection before shipment;
3.what can you buy from us?
Corrugated Cardboard Production Line,Carton Box Making machine, Box Printing Forming Machine, Auto folder gluer, sitching machine, die cutting machine, bundling machine..
4. why buy from us not from other suppliers?
Factory related carton machinery import & export company, based on more than 30 years experience in providing complete and carton machinery solutions according to different customer situations and requriements. reliable quality and good service on site.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,CAD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,Arabic,French,Russian,Italian

---
