Variable Speed Bench Vertical Drilling and Milling Machine Zay7045V/1

Product Description

1.Product Description Features
1)Variable speed
2) Milling, drilling, boring, reaming 3) Headstock swivels 90vertically
4) Micro feed precision
5) Adjustable gibs on table precision.
6)Strong rigidity, powerful cutting and precisely positioning.
2.Specification

Model	ZAY7045V/1
Drilling capacity	45mm
Face milling capacity	80mm
End milling capacity	32mm
Distance from spindle nose to table	450mm
Min. distance from spindle axis to column	260mm
Spindle travel	130mm
Spindle taper	MT3,M. T. 4 or R8
Range of spindle speed(2 steps)	100-530 r. p. m,530-2600r.p.m
Auto-feeding step of spindle	6
Auto feeding amount of spindle	0.06-0.3mm/r
Swivel angle of headstock(horizontally/perpendicularly)	± 90°
Table size	800× 240mm
Forward and backward travel of table	175mm
Left and right travel of table	500mm
Motor power	1.5KW(2HP)
Voltage/frequency	As customer' s requirement
Net weight/gross weight	300kg/350kg
Packing size	770× 880× 1160mm
Loading amount	36pcs/20 ' container

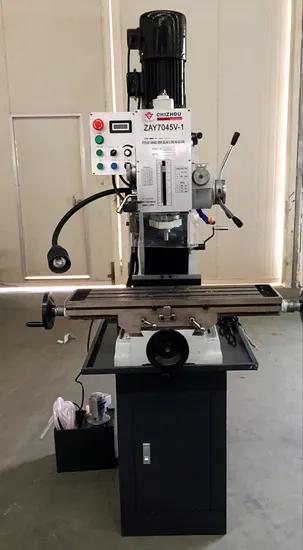

3.Machine Photo
3.Manufacturing Ability
4.We in Fairs

5 OEM APPROVED * LOGO OEM accept.
* Packing design OEM accept
* Even machine design OEM accept.
.
6.Our team Service * Professional team,perfect pre-sale and after-sale service.
* Engineers available to service machinery overseas.
* Good English speakers from sale department,can handle your suggestion

---
