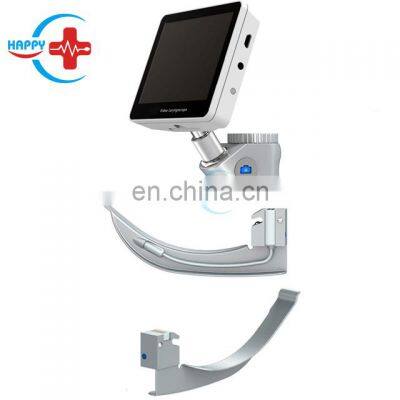

HC-G032 Anesthesia video laryngoscope reusable stainless steel blades

Product Description

Product Description
HC-G032 Anesthesia video laryngoscope reusable stainless steel blades
Product Description
Features for HC-G032 Anesthesia video laryngoscope:
Features:
Class equipment belongs: II class,
Device Application Part: laryngoscope blade
Input power of the device: ~ 220V, 50 / 60HZ
Power adapter input power: 30VA
Output voltage: 4.2-12V
The device does not belong to the anti-flooding of common equipment
Equipment operating mode: Continuous operation
Equipment for portable handheld devices
Video laryngoscope Resolution: ≥3.51LP / mm Part
Parameters
Technical Specifications

Display
size
≥3.5Inch

Resolution
≥640*480

power
≥12V

Backlight
LED

Up and down rotation Angle
0-180
Turn right or left Angle
0-360
data output
Easy to set up and store files
Video Output
An external monitor to facilitate teaching and demonstration
Laryngoscope blades (including camera)
Resolution
≥300000

power
≤12V

Laryngoscope blade
All 304 medical stainless steel, can be equipped with 4, Annex (I)

FOV
≥90
illuminance
≥8000LUX

Battery
type
Lithium-ion rechargeable batteries / 3 on the 7th battery

Voltage
≤7.4V

Capacity
>1200mAh

Cycle count
>300

Charging time
<8 hour

Power Adapter
Charging interface input polarity
Positive with
Charger input
100-250V,50Hz
Charger output
4.2V-12V,1000mA
Transport / storage
Temperature
-10℃~+40℃
Humidity
≤93%
Atmospheric pressure
500hPa to 1060hPa
Work Environment
Temperature
-10℃~+40℃
Humidity
30%~85%
Atmospheric pressure
700hPa to 1060hpa
Unique anti-fog function
No need to warm-up, the boot can be anti-fog. The world's most advanced anti-fog technology
Total Weight
210g Lightweight, convenient, high-comfort performance.
Position of the camera
Camera angle video laryngoscope vertical distance between the lens and the front of less 45mm. Design of visual distance of 45mm, so the camera focal length to maximize clarity. Vision without blind intubation more precise, clearly identify the structure of the throat, the difference between the esophagus and airway entrance entrance, avoiding the blind wear and misuse wear.
Photo camera function
Place a button on the handle quickly the camera button, camera speed responsive, user-friendly design. More continuous recording.
Unique metal connecting parts: the connection between the lens and the handle
The connection between the lens and the handle lock using the latest technology, and lens mounting bracket high strength metal. Safety performance is maximized, connections are 304 medical stainless steel
Handle shape, length, comfortable short handle design
The operator holds comfortable and convenient, and reduce the impact on the patient's chest laryngoscope insert operation.
Accessories laryngoscope blade models:
MIL Lens model (straight piece) C Lens Model (Bender)
MIL00#:64±5mm(Preterm children) C0#:80±3mm (Neonatal)
MIL 0#:80±5mm(Neonatal) C1#:90 (Neonatal)
MIL 1#:100±2mm(Preschool) C2#:100 (Preschool)
MIL 2#:155 (Child) C3#:130 (Adult)
MIL 3#:200±5mm (Adult) C4#:160±5mm (Adult)
MIL 4#:210±5mm (Adult)
Difficult laryngoscopy lens model(Bending sheet adjustable)
C2 #: 100mm (Preschool)
C3 #: 130mm (Adult)
C3.5#:145mm±7mm (Adult)
C4 #: 160mm±4mm (Adult)

Pictures for HC-G032 Anesthesia video laryngoscope:
Packaging & Shipping
Company Information
Our Services
FAQ
1. How to place order of HC-G032 Anesthesia video laryngoscope ?
A: Firstly we confirm product details and then send the Proforma Invoice,
You make payment to us through Alibaba Trade Assurance or T/T, Western Union or MoneyGram,
after we confirm your payment then ship the product to you once finished production.
2. For HC-G032 Anesthesia video laryngoscope product, What’s the minimum order quantity (MOQ)?
A: For disposable material,We have our own MOQ,For our HC-G032 Anesthesia video laryngoscope , our MOQ: 1pc,
3. What is your warranty?
A: For most products the warranty is for 12 months, some products we provide 18 months warranty.
For HC-G032 Anesthesia video laryngoscope , we provide 12 months warranty.
4. What’s your delivery time?
A: Generally it is 5 working days if goods in stock. within 10 working days if the goods need production,
And also the delivery time depands on quantity.For HC-G032 Anesthesia video laryngoscope , the delivery time is 10 working days.
5. How to ship the product?
A: The shipping way normally depand on your quantity,total CBM and weight.
We have our own shipping company to provide best shipping cost and efficient way.
