Metal Sheet Cutting Machine Hydraulic Guillotine Swing Beam

Product Description

Electrical Tansformer silicon steel sheet lengthwise 0.23-0.5mm shearing production line
I.Cutting Machine Introduction:
Electrical Tansformer silicon steel sheet lengthwise 0.23-0.5mm shearing production line is special equipment for shearing silicon steel sheet into strip and is composed mainly of discharging, rolling, guiding and supporting, lengthwise shearing and tensioning devices, etc. The equipment choose internationally advanced tensile-shear process, hard alloy rolling shear and PLC for automatic control and the entire production line operate accurately and reliably.

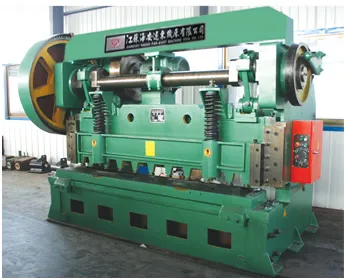

II.Equipment Photo
III.Main Technical Parameters

Item	Parameters
Inner diameter of coiled material	500mm
Rolling shear wait the aniseed wide	1250mm
Shearing thickness	0.23~0.5mm
Shearing width	≥40mm
Unverticality one side	≤0.2mm/2m
Shearing burr	≤0.02mm
Shearing error on width	±0.1mm
Max shearing speed	110 m/min
Scissors outer diameter	Ф200
Knife number	6 pay
Grinding can be a few meters of shear	100000m
Total power of motors	37.2Kw
Floor space	12000×5000mm
Total weight	9500Kg

IV.Steel Shearing Machine Other Details Photo:
V. Contact Information
The products shown above are only the details of some models and products in this production. We sell all the equipment in the solar water heater production line. If you are interested, we look forward to your inquiry.

---
