Livestock Poultry Manure Crude Fiber Wet Mixing Organic Fertilizer Granulator

Product Description

Product Description

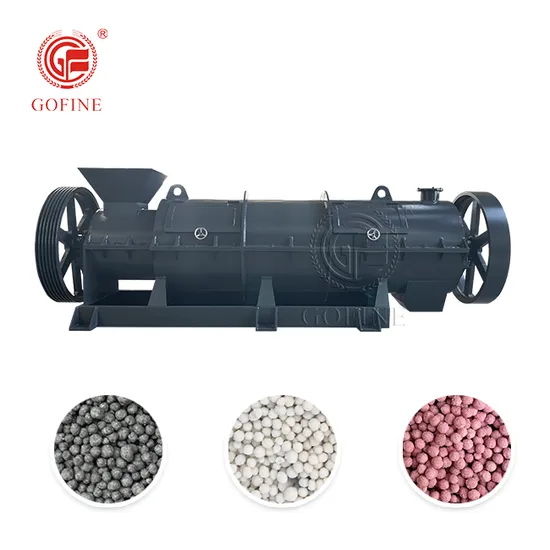

The stirring teeth granulator is a special equipment in the organic compound fertilizer granulation equipment. It adopts wet granulation technology, which is particularly suitable for processing crude fiber raw materials that are difficult to granulate, such as straw, sugar residue, medicine residue, animal feces, humic acid, and sludge.
The machine is equipped with a push rod with high density, and the finished granules are of high hardness and large output. The two ends of the equipment are equipped with large and small gears, which are driven by belts to rotate, effectively reducing the friction between the gears of the reducer, and thereby saving energy consumption. The stirring teeth granulator can be used in conjunction with feeding systems, fermentation equipment, crushing mixers, screening machines, and packaging machines to form a complete production line of organic and inorganic fertilizer granules.
Features of Stirring Teeth Granulator
The stirring teeth granulator is a commonly used granulation equipment, and its main features include:
Versatility: It is widely used in chemical, agricultural, food, and other fields.
Efficient and energy-saving: It adopts a high-speed rotating agitator, with high production efficiency and low energy consumption.
Stable particle quality: The granulator has stable performance, ensuring that the size and shape of the fertilizer particles meet production requirements.
Easy to operate: It is easy to clean and maintain, reducing the complexity and time cost of manual operation.
In general, the agitator granulator has the characteristics of versatility, high efficiency and energy saving, stable particle quality, easy operation, wide application range and adjustable particle morphology, which is suitable for various granulation production process needs.


Specially used for granulation of livestock and poultry manure, compost, green manure, sea fertilizer, cake fertilizer, peat, soil fertilizer, three wastes, microorganisms, urban domestic waste, and organic fermented fertilizer. This machine is suitable for granulation of light fine powder materials. The finer the basic particles of the fine powder material, the higher the sphericity of the particles, and the better the quality of the pellets. Typical application materials: chicken manure, pig manure, cow manure, charcoal, clay, kaolin, etc

Product Parameters

Model	Production capacity (t/h)	Power (kw)	L x W x H (mm)	Reducer
ZLJ-60	2-3	37	4500x1700x1300	ZD20
ZLJ-80	3-5	55	4900x1700x1400	ZD25
ZLJ-100	6-8	75	5300x1900x1500	ZD30
ZLJ-120	8-12	90	5700x2100x1700	ZD40
ZLJ-150	10-15	110	6300x2200x2000	ZD50

Product Details

Work Process of Stirring Teeth Granulator
The stirring teeth granulator adopts the advanced working method of wet kneading granulation, which can quickly add materials into spherical fertilizer granules. Initially, the material to be processed is placed in the hopper, and then through the internal rotating high-density push rod, the material undergoes continuous stirring, granulation, spheroidization, densification, and other processes, and finally forms uniform and high-hardness granules. The processed fertilizer granules are discharged from the bottom of the equipment. By adjusting the moisture content of the material and the speed of the main shaft, the size of the fertilizer particles can be easily changed, providing more flexibility and adjustability for production.

Overseas Scene


Packaging & Shipping


About Us
About our company
Gofine Machine, establish in 2010, located in Longgang Developed Zone of Xingyang City, Henan, China, specially engaged in producing fertilizer production machinery, animal feed machinery, waste recycling machinery and trading in building machinery and food machinery and wood machinery; we have heavy standardization industrial plants with area 60000 square meter, bring advanced large metal processing equipment, including the 10 sets CNC machining center, 3sets laser cutting machine, and other equipment reaching total 100 sets; we have get known by the ISO9001-20001 certification and CE certification; Welcome you to know us more on our machine and our technology.




FAQ
1. Why choose us?
Gofine Machine is a professional equipment manufacturer, that integrates scientific research, production, sales, import, and export. One-stop procurement service, support customized solutions.
2. How can we guarantee the quality?
We have a strict quality control system to ensure the factory quality of each product.
3. What can you buy from us?
Gofine Machine produces fermentation equipment, compost-turning machines, crushing mixers, granulators, screeners, packaging machines, and other commercial equipment, etc.
4. What services can we provide?
We have professional overseas installers responsible for installation, commissioning and free training. Professional personnel are waiting for you online 24 hours a day.
5. How to choose equipment?
We have a professional technical team to customize reasonable solutions for you and support customized services.

---
